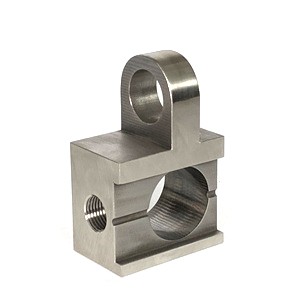

Product Name: Cutting Head Support Valve Body / Valve Body (Part No. 520000810)

Description:
This component is a cutting head support valve body, a precision-machined manifold block that serves as the structural backbone of the cutting head assembly in a waterjet cutting system. It is typically manufactured from high-strength stainless steel or hardened alloy and is designed to mount directly onto the Z-axis motion system or cutting head support bracket .

The valve body functions as a central fluid distribution hub, containing internal flow passages that direct high-pressure water from the supply line to the cutting head assembly. It also serves as the mounting interface for the water on/off valve (water switch), holding it securely in place and maintaining precise alignment with the mixing chamber and nozzle components .

As a critical structural and hydraulic component, the valve body is rated for continuous operation at 60,000–90,000 PSI (approximately 4,137–6,200 bar) and is designed to withstand the extreme pressure cycling and vibration inherent in waterjet cutting operations.

Applications:

• Serves as the main structural support for the cutting head assembly on the machine's Z-axis

• Mounts and positions the water on/off valve relative to the mixing chamber and nozzle tube

• Provides internal high-pressure water passages from the valve to the cutting head components

• Suitable for both abrasive and pure water waterjet cutting systems

Features:

• High-Strength Construction: Manufactured from corrosion-resistant stainless steel or hardened alloy to withstand extreme pressure cycling

• Precision-Machined Flow Passages: Internal cross-drilled ports direct high-pressure water with minimal turbulence and pressure loss

• Integrated Mounting Points: Precision-machined surfaces and threaded holes for secure attachment to the cutting head support bracket

• Leak-Tight Seal Interfaces: Precision-machined sealing surfaces ensure proper mating with the water on/off valve and downstream components

• High-Pressure Rating: Engineered for continuous operation at 60,000–90,000 PSI (4,137–6,200 bar)

Maintenance:

Failure Diagnosis:

• External Water Leakage: Visible water weeping from valve body joints indicates seal failure or loosened connections

• Pressure Drop: Inability to maintain cutting pressure may indicate internal erosion or damage to flow passages

• Slower Valve Response: If the cutting valve fails to open or close promptly, the valve body may have internal blockage or damage

• Unusual Noises: Grinding or vibration sounds from the cutting head area may indicate structural issues with the support valve body

Inspection and Maintenance Procedures:

• Regular Seal Replacement: Always replace all O-rings, backup rings, and seal assemblies when the valve body is disassembled . Do not reuse old seals

• Internal Passage Cleaning: During overhaul, clean internal flow passages thoroughly with low-pressure water and soft brushes. Remove all debris, mineral deposits, and old seal residue

• Surface Inspection: Inspect all sealing surfaces and threaded ports for pitting, erosion, galling, or thread damage

• Crack Detection: Examine the valve body carefully for stress cracks, especially around port connections and mounting points

• Torque Compliance: When reinstalling, tighten all mounting bolts and fitting connections to the specific torque values listed in the equipment service manual

• Thread Lubrication: Apply high-pressure thread lubricant or anti-seize compound to threads during reassembly to prevent galling

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before removing or servicing the valve body

• Replacement Criteria: Replace the valve body if cracks are detected, if internal passages are severely eroded, or if threads are damaged beyond repair
