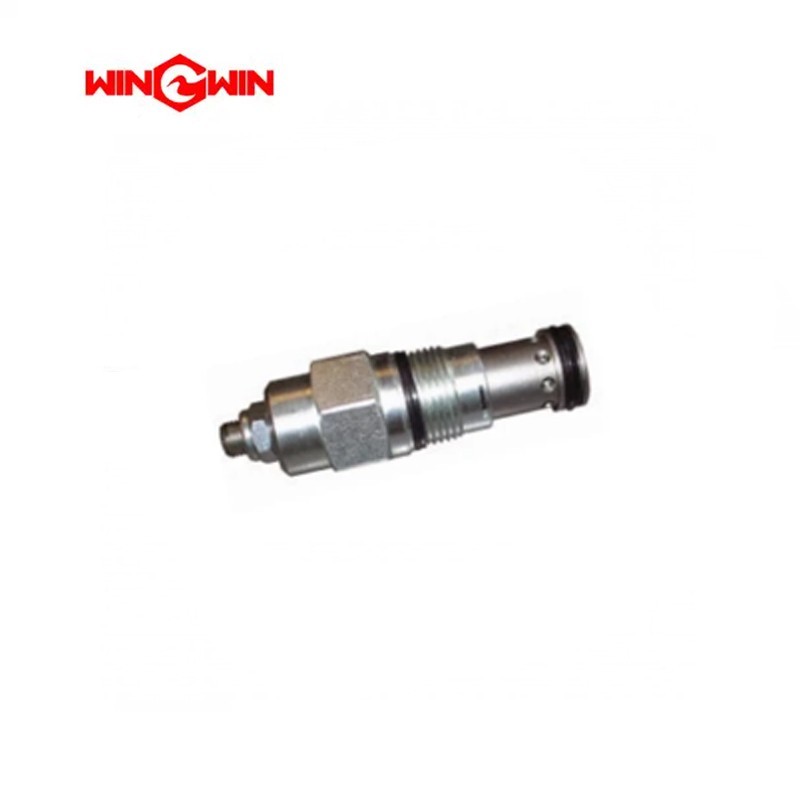

Product Name: Relief Valve / System Pressure Relief Valve (Part No. 72106187)

Description:
This component is a pressure relief valve, a critical safety and control device installed in the hydraulic manifold of a waterjet intensifier pump . Its primary function is to protect the hydraulic system from dangerous over-pressure conditions by providing a controlled path for excess fluid to return to the tank .

The relief valve is a normally closed, spring-loaded or pilot-operated valve. It monitors the pressure in the main hydraulic circuit. When the system pressure exceeds the valve’s pre-set limit (e.g., due to a component malfunction, blocked line, or incorrect pump setting), the valve opens. This action diverts the high-pressure hydraulic fluid back to the reservoir, instantly limiting the pressure in the system and preventing damage to seals, the pump, and other components . Once the system pressure drops back to a safe level, the valve closes automatically .

Applications:

• Provides over-pressure protection for the main hydraulic circuit in waterjet intensifier pumps .

• Directly mounted on the system’s hydraulic manifold block .

• Prevents catastrophic failure of hydraulic hoses, seals, and the pump due to pressure spikes .

• Serves as a key component during system troubleshooting for pressure-related issues .

Features:

• System Safety Device: The primary component designed to prevent over-pressure damage and ensure safe operation .

• Automatic Operation: The valve is self-acting, opening and closing based on system pressure without external control .

• Precision Calibration: Each valve is pre-set to a specific cracking pressure (usually between 3,200-3,700 PSI for 60K systems) to match the pump’s specifications.

• Direct OEM Replacement: Interchangeable with OEM part number 72106187 for H2O Jet, KMT, and AccuStream hydraulic systems.

Maintenance:

Failure Diagnosis (When to Inspect/Replace):

• Inability to Build Pressure: The pump runs, but the system cannot reach cutting pressure. A relief valve stuck in an open position will bypass oil back to the tank, preventing pressure buildup .

• System Overheating: If the relief valve is partially open or "cracking" below its set point, it allows a continuous bypass of high-pressure oil, generating excessive heat in the hydraulic system.

• Erratic Pressure or "Chatter": Unstable cutting pressure or a chattering noise from the valve indicates a worn or contaminated spool .

• External Leakage: Visible hydraulic oil weeping from the valve adjustment stem or body indicates seal failure.

• Pressure Spikes: If the system reaches pressures significantly above the normal operating range without relief, the valve is stuck closed and must be replaced.

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize the high-pressure water system, and the hydraulic system, and follow lockout/tagout procedures.

• Do Not Blindly Adjust: The relief valve is a precision safety device. Never attempt to adjust the pressure setting without a calibrated hydraulic pressure gauge connected to the manifold.

• Check for Contamination: If the valve is stuck or erratic, dirt or metal particles may be lodged in the spool. If found, the entire hydraulic system should be inspected and the oil filtered or changed .

• Torque Compliance: When reinstalling, tighten the valve into the manifold block to the specific torque value listed in the equipment service manual to prevent damage to the threads.

• Replacement (Recommended): Due to the precision fit of the spool and seat, a worn or damaged relief valve is typically replaced as a complete unit rather than being rebuilt in the field to ensure safety and reliability.

Cross-Reference Information:

• H2O Jet / KMT #: 72106187

• Component of the Hydraulic Manifold Assembly

• 60K/94K Hydraulic System Component
