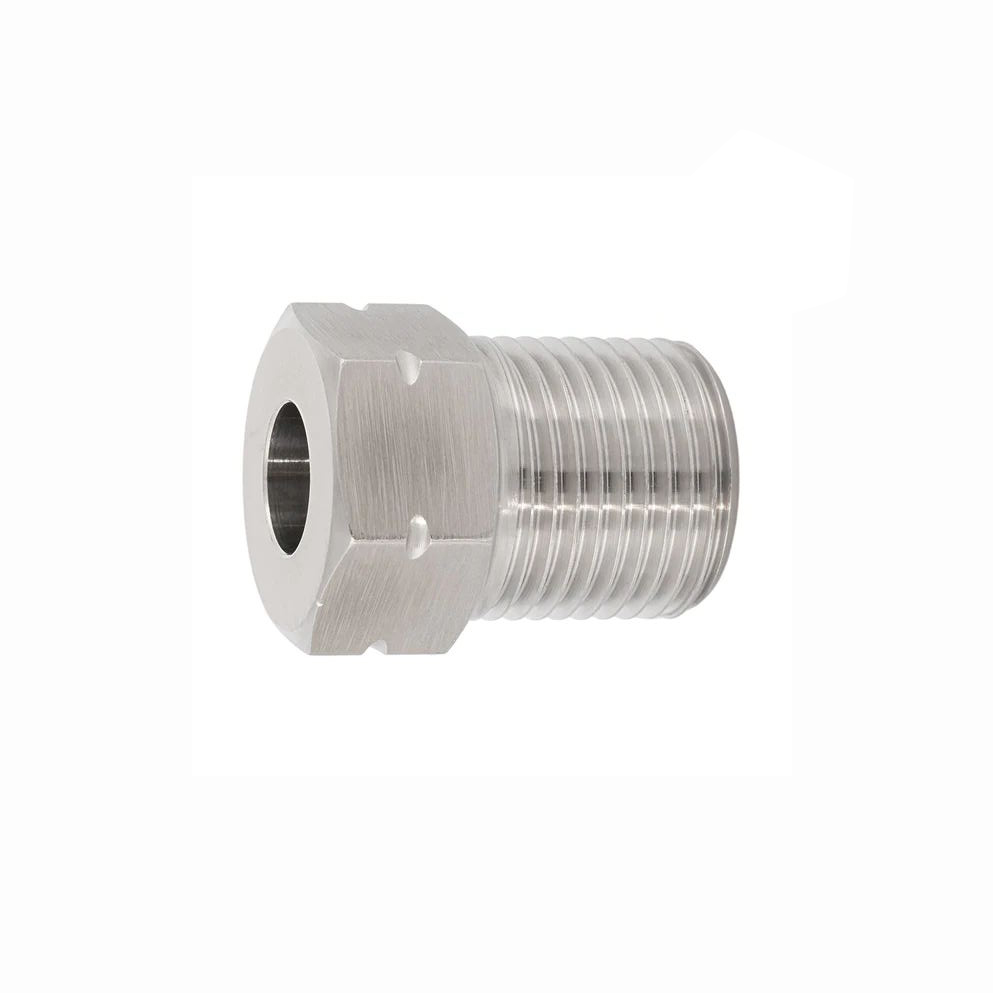

Product Name: Clamping Nut / Nozzle Nut / Retaining Nut (3" Size / Part No. 1-13632)

Description:
This component is a clamping nut, also known as a nozzle retaining nut or sleeve nut, specifically designed for the cutting head assembly of an abrasive waterjet cutting system. The "3 inch" designation refers to the standard size of the mating thread or the overall length dimension of the nut. It is a precision-machined, high-strength stainless steel nut that serves to secure the mixing tube (focusing tube) and other internal components within the cutting head body.

The nut threads onto the cutting head housing and applies uniform radial compression to secure the mixing tube while maintaining precise coaxial alignment with the water orifice. It is rated for continuous operation at 60,000 PSI (approximately 4,137 bar).

Applications:

• Secures the mixing tube (focusing tube) within the cutting head assembly of abrasive waterjet systems

• Maintains proper alignment of internal components for jet coherence

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar)

• Compatible with AccuStream waterjet systems and other standard cutting heads

Features:

• High-Strength Stainless Steel Construction: Provides corrosion resistance and structural integrity under extreme pressure cycling

• Precision-Machined Threads: Ensures smooth engagement with the cutting head body and accurate torque application

• 3 Inch Design: Standard size for specific cutting head models (referenced as "3-inch" configuration)

• Non-Consumable Component: Under normal use, this component is not a direct wear part, though it may degrade over time

• Direct OEM Replacement: Interchangeable with AccuStream part number 1-13632

Maintenance:

Failure Diagnosis:

• Water Leakage: Visible high-pressure water weepage around the nut area indicates a failed seal or improper torque

• Thread Damage: Stripped, galling, or cross-threaded threads prevent proper clamping

• Loose Fit: If the nut becomes loose during operation, it cannot maintain proper sealing

• Visible Cracks or Deformation: Any cracking or distortion warrants immediate replacement

• Difficult Removal: Nut that seizes or requires excessive force to remove indicates thread damage or corrosion

Inspection and Replacement Procedures:

• Regular Inspection: Periodically inspect the clamping nut for signs of thread wear, galling, deformation, or surface damage

• Thread Care: Before reassembly, carefully inspect threads for wear, corrosion, or damage. Clean threads thoroughly

• Torque Compliance (Critical): Tighten the clamping nut to the specific torque value listed in the equipment service manual. Over-tightening can crack internal components; under-tightening will cause leaks

• Thread Lubrication: Apply a thin layer of high-pressure thread lubricant or anti-seize compound to threads during reassembly to prevent galling and ensure accurate torque application

• Replace if Damaged: Replace the clamping nut immediately if threads are damaged, cracks are visible, or deformation is detected

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before loosening or removing the clamping nut

• Use Proper Tools: Use the correctly sized wrench on the nut's wrench flats. Do not use pipe wrenches or pliers that could damage the nut surfaces

• Seal Inspection: When reinstalling, inspect and replace associated O-rings and seals to ensure leak-free operation

• Wear Note: While not a typical wear part, repeated installation cycles, high-pressure vibration, and long-term operation can cause thread degradation over time
