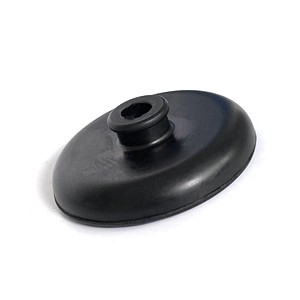

Product Name: Dust Cover / Abrasive Proof Cover (Part No. 731010281)

Description:
This component is a dust cover, also known as an abrasive proof cover or protective boot, designed to shield critical components of waterjet cutting systems from environmental contaminants. It functions as a flexible barrier that prevents abrasive garnet dust, water mist, fine particles, and debris from entering sensitive areas such as linear guide rails, ball screws, cylinder rods, and precision motion components .

The cover is typically manufactured from durable, wear-resistant materials. Common material options include 三防布 (three-proof fabric) which is water-proof, oil-proof, and dust-proof, neoprene rubber, or coated fabrics . These materials are chosen for their resistance to abrasion, as well as their ability to withstand exposure to water and hydraulic fluids . The construction often features a flexible, accordion-like (风琴式) or convoluted design, which allows it to expand and contract freely with the machine's motion .

This specific part number (731010281) is identified as a genuine Dardi waterjet spare part .

Applications:

• Installed on the linear guide rails and ball screws of the X, Y, and Z motion axes to prevent abrasive ingress .

• Mounted on hydraulic cylinder rods to protect the rod surface from scoring and the internal seals from contamination .

• Fitted around the cutting head assembly to shield it from high-pressure water spray and flying abrasive particles .

• Suitable for all types of waterjet cutting machines, including gantry and 5-axis systems .

Features:

• Abrasion & Wear Resistance: Constructed from high-strength materials (e.g., PVC-coated polyester or rubber) to resist hard impacts from abrasive garnet and metal chips .

• Environmental Sealing: Provides effective protection against dust, water mist, and fine particulate contamination .

• Flexible Design: Features a bellows or telescopic structure allowing for high-speed motion (up to 200m/min), long stroke lengths, and a high compression ratio (up to 10:1) .

• Dimensional Stability: Often reinforced with internal PVC or steel wire skeletons to prevent collapse or deformation during rapid acceleration .

• Wide Temperature Range: Material selections are capable of withstanding temperatures from -30°C to +130°C, suitable for various workshop climates .

Maintenance:

• Regular Cleaning: Periodically clean the external surface of the cover with a soft brush or damp cloth to remove accumulated abrasive dust, which can cause the fabric to stiffen or crack over time .

• Inspection for Damage: Frequently inspect the cover for signs of wear, pinholes, tears, or seam separation. Even small punctures can allow abrasive dust to penetrate and damage the guide rails .

• Check Fasteners: Ensure that the end clamps, Velcro, or magnetic strips securing the cover are tight and free from debris. Loose covers may sag and interfere with machine motion .

• Structural Integrity: If the cover uses an internal metal frame (e.g., steel support rings), check for rust or deformation.

• Full Depressurization: While not a high-pressure component, ensure the machine motion systems are stationary, the waterjet system is fully depressurized, and lockout/tagout procedures are followed before removing the cover for cleaning or replacement.

• Replacement Criteria: Replace the cover immediately if any holes, cracks, or loss of flexibility are detected. A compromised cover will lead to accelerated wear of expensive linear motion components .
