DR012001220-Sealing-Ring-NS12-BHDT-spare-parts.1911.3-1

Short Description:

Used for BFT/BHDT pump.
We enable precise cutting and protect your efficient production.
With genuine BFT parts, your waterjet system always runs like new.
1. Performance revitalized, costs halved.
2. Choose BFT, choose reliability.

INQUIRY

Details

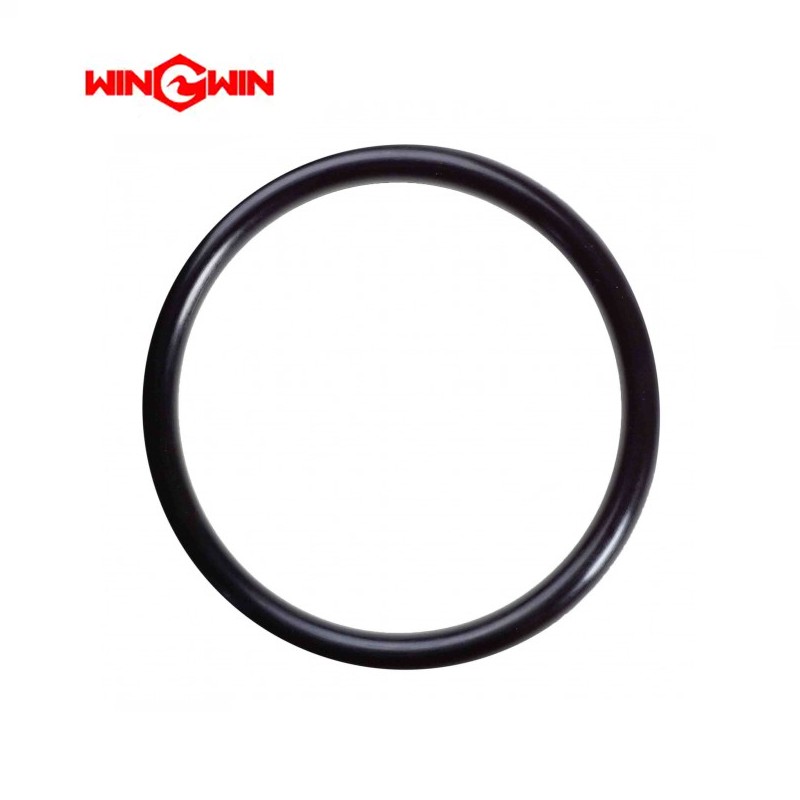

Product Name: Sealing Ring / Backup Ring (Part No. DR012001220)

Description:
This component is a Sealing Ring, specifically sized as NS12 and used as a Backup Ring (Back-up Ring) in BHDT high-pressure waterjet intensifier pumps . It is a precision rigid ring manufactured from high-strength, wear-resistant material (such as PTFE, PEEK, or engineered polymer).

In high-pressure sealing systems (typically up to 60,000-94,000 PSI / 4,137-6,480 bar), BHDT equipment employs a combination of hard seals and soft seals. The high-pressure cylinder and plug utilize hard seals, while the high-pressure cylinder and cylinder end cover utilize soft seals . This sealing ring functions as a "Back-up Ring" for the soft seal component. It is installed adjacent to an elastomeric O-ring to provide critical anti-extrusion support, filling the radial gap and preventing the softer O-ring material from being forced into the clearance under extreme pressure, which would otherwise cause rapid seal failure and water leaks.

This component is part of the BHDT high-pressure sealing system and is designed to be used in the assembly between the high-pressure cylinder and the cylinder end cover.

Applications:

Provides anti-extrusion support for O-rings in the high-pressure cylinder end cover seal assembly of BHDT waterjet intensifier pumps .
Used as a static sealing support component in the combination of hard and soft seals on BHDT equipment.
Suitable for ultra-high pressure waterjet systems operating at 60,000-94,000 PSI.
Compatible with BHDT high-pressure intensifier components.

Features:

Rigid Anti-Extrusion Design: The rigid construction fills the extrusion gap, preventing the softer primary seal from failing under pressure.
Precision Dimensions: Manufactured to exact tolerances (NS12 size) for a perfect fit in the designated seal groove.
Critical Consumable Component: Designed for periodic replacement; a worn or missing backup ring leads to immediate seal failure and water leakage.
OEM Compatibility: Direct replacement for BHDT part number DR012001220.
Static Sealing Application: Specifically engineered for non-moving (static) interfaces.

Maintenance:

Failure Diagnosis (When to Replace):

External Water Leakage: According to BHDT equipment notes, if the inspection hole on the cylinder end cover leaks, the high-pressure water seal must be replaced immediately . This is the primary indicator of seal failure.
Pressure Drop: Inability to maintain rated cutting pressure suggests internal seal failure, often involving extrusion damage.
Visible Damage During Disassembly: When the pump is opened, inspect the backup ring for signs of deformation, cracking, splitting, or compression set. Any visible damage warrants immediate replacement.
Regular Overhaul Schedule: It is standard practice to replace the backup ring together with the O-ring as a set during any scheduled pump maintenance.

Inspection and Replacement Guidelines:

Always Replace with O-Rings: This is a single-use consumable component. Always replace it with a new one whenever the adjacent O-ring is replaced. Do not reuse old backup rings.
Purchase Together (Recommended): The end sealing technology requirements are high. It is strongly recommended that you purchase the high-pressure water seal components (including this backup ring, the O-ring, and related seals) together to facilitate proper installation and ensure component compatibility .
Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures.
Clean Installation: Perform the rebuild in a designated clean area. Thoroughly clean the seal groove and all mating surfaces with a soft, lint-free cloth. Remove all debris, old seal residue, and mineral deposits.
Lubrication: Apply a thin, uniform layer of manufacturer-recommended high-pressure grease to the backup ring and O-ring during installation to prevent pinching, rolling, or tearing during assembly.
Groove Inspection: Inspect the seal groove for nicks, burrs, sharp edges, or damage that could compromise the seal stack.
Replace as a Set: When servicing the high-pressure sealing stack, it is recommended to replace all components (O-rings, backup rings, and dynamic seals) simultaneously.
