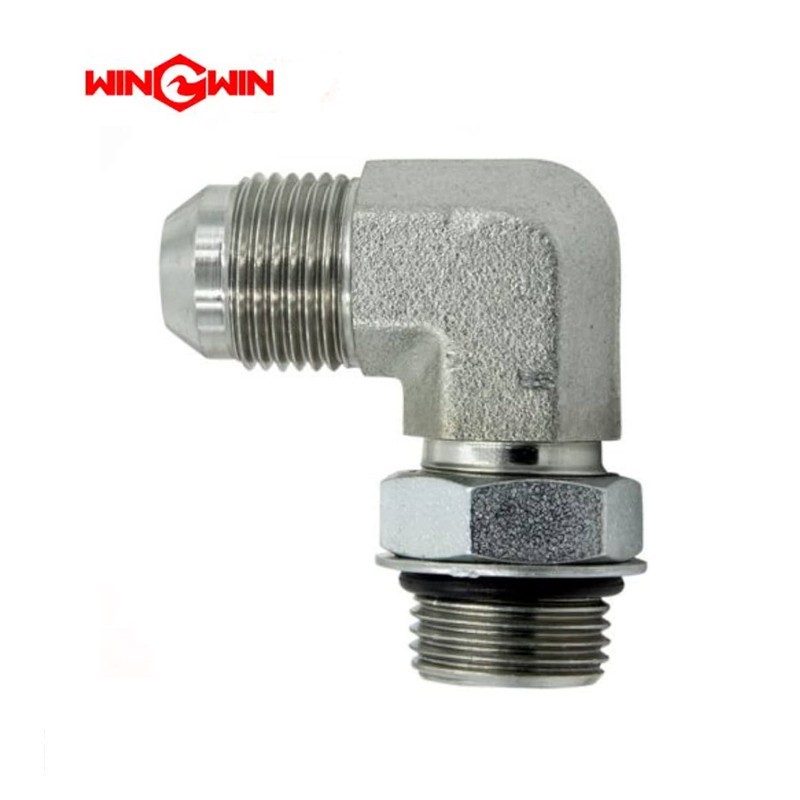

Adapter for Water Jet Cutting Machine Parts – JIC to ORB, 25 x 25, Model No. 10142644-Adapter-JICORB-25-x-25.1295.3-1

Introduction, Application, Features, and Maintenance:

This component is an adapter designed for water jet cutting systems. It converts between two common hydraulic connection standards – JIC (Joint Industry Council) and ORB (O-Ring Boss) – both with a 25 mm nominal size, allowing components with incompatible port types to be joined together.

Application:
Used to connect high-pressure lines, fittings, or valves that have different thread or sealing standards in water jet cutting machines. Typical installation locations include between pump outlets, valve assemblies, manifolds, or cutting head supply lines where a JIC-to-ORB transition is required.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Converts between JIC (flared seat) and ORB (O-ring sealed) connection standards.

• Both ends feature 25 mm nominal size for straight-through flow.

• Manufactured from high-strength, corrosion-resistant material suitable for abrasive water jet media.

• Precision-machined sealing surfaces ensure leak-free operation.

• Compact design minimizes space requirements and reduces potential leak points.

Maintenance:

• Regularly inspect the adapter body, threads, O-ring seat, and flared sealing surface for signs of erosion, cracking, or thread damage.

• Check the O-ring (if present) for hardening, cracking, or deformation.

• Replace immediately if any leakage, surface pitting, or thread damage is detected.

• Always use a new O-ring when reassembling the ORB connection.

• Inspect the JIC flare surface for scratches or damage that could compromise sealing.

• Follow specified torque values when tightening both connection ends.
