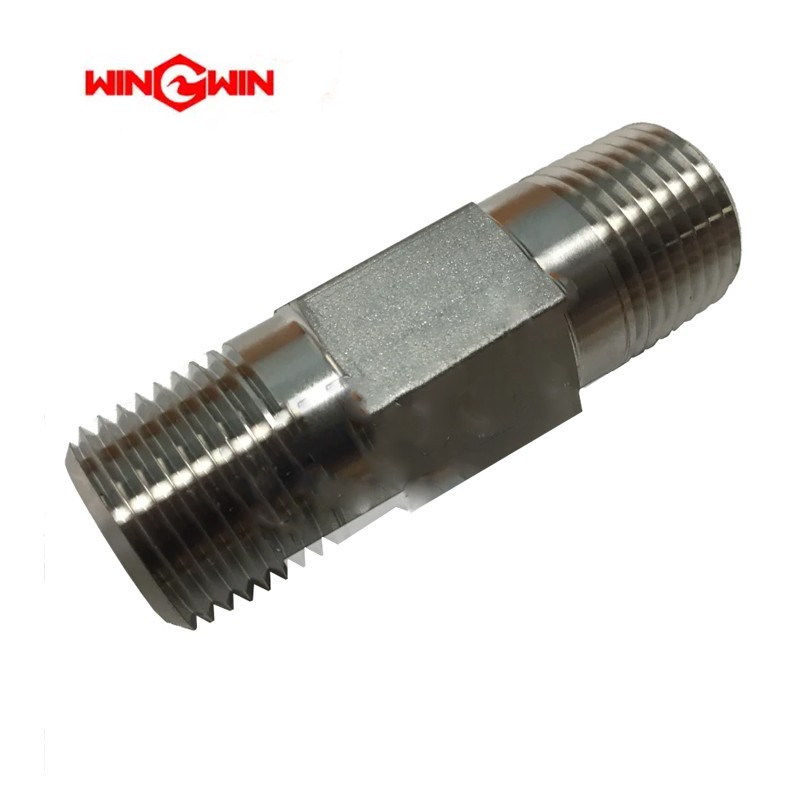

Product Name: Relief Valve Assembly (Low-Pressure Water Circuit) – Part No. 05072798

Description:
This component is a relief valve assembly specifically designed for the low-pressure water circuit of a waterjet cutting system . It is a normally closed safety valve that opens to release pressure when the water supply pressure exceeds a predetermined safe limit, thereby protecting downstream components (such as filters, pumps, and seals) from damaging pressure spikes.

According to the official parts diagram for the Low-Pressure Water Filter Assembly (P/N 72155629), this relief valve is listed as Item 4 . It is installed in the line after the water supply and before the intensifier pump to ensure that any over‑pressure condition does not propagate into the high‑pressure system.

Applications:

• Installed in the low-pressure water intake circuit to protect the intensifier pump from over‑pressure

• Acts as a safety device to prevent damage to water filters, hoses, and seals caused by supply pressure surges

• Used as a primary component in the Low-Pressure Water Filter Assembly (P/N 72155629) for waterjet cutting systems

• Compatible with 60,000–94,000 PSI (approximately 4,137–6,480 bar) waterjet systems

Features:

• Normally Closed (NC) Safety Design: The valve remains closed during normal operation and opens only when the inlet pressure exceeds the set point, providing automatic over‑pressure protection

• Low-Pressure Circuit Compatibility: Specifically engineered for the low-pressure water supply side (typically ≤ 150 PSI)

• Direct OEM Replacement: Interchangeable with the manufacturer‘s part number as listed in the official parts diagram (Item 4 in Assembly 72155629)

• Corrosion-Resistant Construction: Manufactured from materials suitable for fresh water or treated water supply environments

Maintenance:

Failure Diagnosis (When to Replace):

• External Water Leakage: Visible water weeping from the valve body or adjustment stem indicates seal failure requiring immediate replacement

• Premature Opening: If the water supply pressure is normal (below the set point) but the valve is releasing water, the spring may be fatigued or the valve seat damaged

• Failure to Open: If water pressure exceeds the safe limit but the valve does not open, the valve may be stuck closed due to debris or internal corrosion — a dangerous condition that can damage downstream components

• Chatter or Unusual Noise: A squealing or chattering sound from the valve may indicate a worn seat or debris lodged in the valve mechanism

• Scheduled Inspection: Inspect the relief valve during routine maintenance (e.g., every 1,000 operating hours) and replace if signs of wear, corrosion, or leakage are detected

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system, shut off the water supply, bleed all residual pressure, and follow lockout/tagout procedures

• Check for Debris: If the valve sticks or fails to seal, contamination may be lodged in the seat. Clean the valve and upstream filter; if contamination is found, inspect the entire water supply system

• Do Not Field‑Adjust: The relief valve is a calibrated safety device. Do not attempt to adjust the pressure setting without specialized equipment and a calibrated pressure gauge. Incorrect adjustment can lead to system damage or unsafe operation

• Torque Compliance: When reinstalling, tighten the valve into the filter assembly port to the specific torque value listed in the equipment service manual to prevent thread damage or leakage

• Replace as a Complete Assembly: If the valve is faulty, replace it as a complete unit. Field repair of internal components is not recommended for safety devices

• Cross‑Reference Part Numbers: 05072798 is listed as Item 4 in Low-Pressure Water Filter Assembly 72155629 (Quantity: 1)
