Product Name: Adapter, JIC/ORB, .75 x .63 – Part No. 05073150

Description:

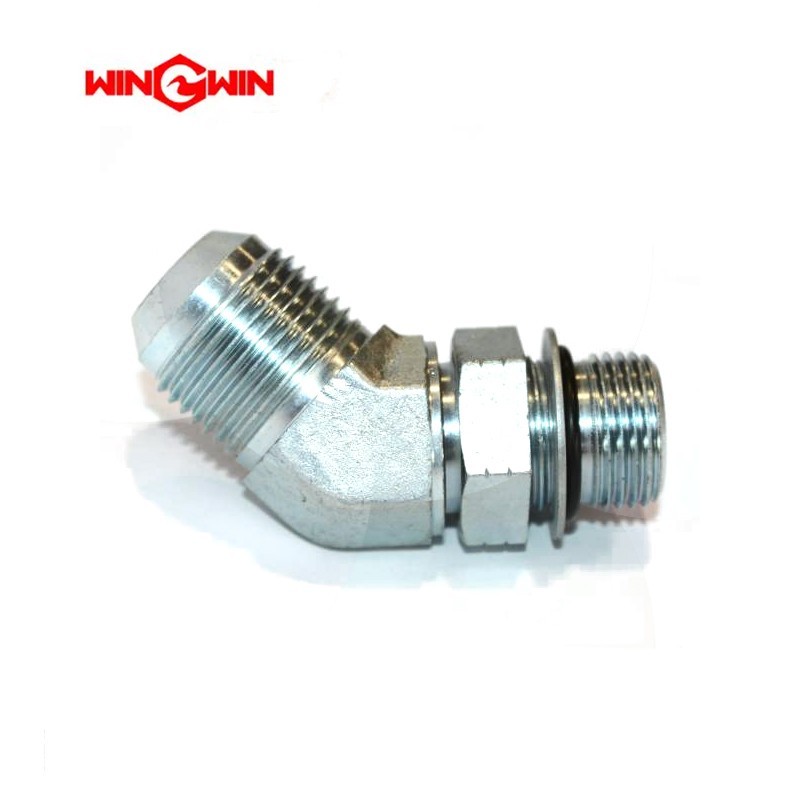

This component is a high-pressure hydraulic adapter that bridges two different industry-standard connection types: JIC (Joint Industry Council) 37° flare and ORB (O-Ring Boss). The .75 x .63 designation indicates a .75 inch (3/4″) JIC male connection on one end and a .63 inch (5/8″) ORB male connection on the other.

The JIC end features a 37° flare cone and creates a reliable, vibration-resistant metal-to-metal seal. The ORB end utilizes a precision straight thread (SAE J514 standard) and seals via an elastomeric O-ring compressed into the port's machined boss face. The adapter is typically manufactured from high-strength carbon steel with a corrosion-resistant plating to withstand harsh waterjet environments.

According to official parts diagrams, this adapter is used in multiple waterjet assemblies:

• Redundant Kit 72155777 – Item quantity: 2

• Oil/Water Heat Exchanger Kit 72156272 – Item quantity: 2

Applications:

• Connects 3/4″ JIC female components to 5/8″ ORB female ports

• Used in redundant intensifier pump systems to ensure continuous operation

• Components of oil/water heat exchanger kits for hydraulic temperature regulation

• Suitable for low to medium pressure hydraulic circuits in waterjet power units

Features:

• JIC 37° Flare Connection: Provides a metal-to-metal seal, highly resistant to vibration and suitable for high-cycle applications

• ORB (O-Ring Boss) Connection: Straight thread design with O-ring seal prevents leakage and reduces thread stress

• Corrosion-Resistant Construction: Steel body with protective zinc or trivalent plating for durability in moist environments

• Straight Male-to-Male Configuration: Direct in-line connection without changing fluid path direction

Maintenance:

Failure Diagnosis (When to Replace):

• External Fluid Leakage: Visible oil weeping at either connection. JIC end leaks indicate damaged flare surface; ORB end leaks indicate O-ring failure

• O-Ring Degradation: If the O-ring shows nicks, cuts, flattening (compression set), hardening, or cracking, the seal is compromised

• Thread Damage: Stripped, galled, or corroded threads prevent proper tightening and sealing

• JIC Flare Damage: Inspect the 37° flare surface for nicks, scratches, or deformation — any damage will cause high-pressure leaks

• Cracked Body: Any visible cracking or distortion of the adapter body requires immediate replacement

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the hydraulic system, shut down the waterjet system, and follow lockout/tagout procedures

• Single-Use O-Ring (ORB End): The O-ring is a single-use consumable. Always install a new, lubricated O-ring whenever the adapter is removed and reinstalled

• Do Not Use Thread Sealant: For ORB connections, do not use PTFE tape or thread sealant—the seal is made by the O-ring, not the threads

• JIC Flare Inspection: Carefully inspect the 37° male flare surface for damage. The JIC connection seals on the flare cone—even minor damage will compromise sealing

• Torque Compliance: Tighten both connections to the specific torque values in the equipment service manual using a calibrated torque wrench

• Two-Wrench Method: Use two wrenches—one to counter-hold the adapter and one to tighten the nut—to prevent twisting stress

• Replacement Criteria: Replace the adapter immediately if threads are damaged, the JIC flare surface is compromised, the O-ring groove is damaged, the body shows cracks, or persistent leakage occurs

Cross-Reference Information:

• OEM Part Number: 05073150

• Used in: Redundant Kit 72155777; Oil/Water Heat Exchanger Kit 72156272

• Thread Standards: SAE J514 / ISO 8434-2 (JIC 37° Flare); SAE J514 (ORB Straight Thread)

•
