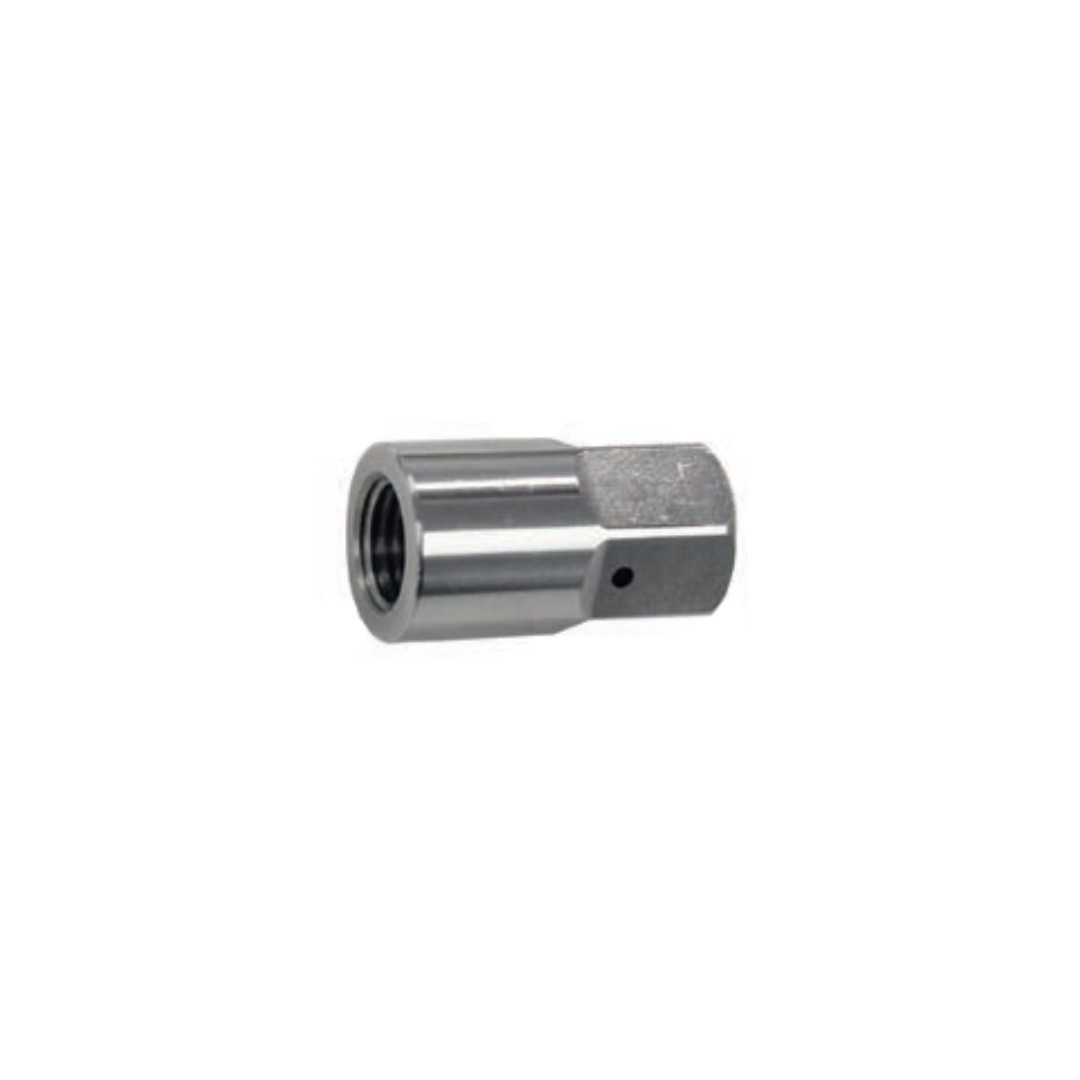

Product Name: Low Mass Cutting Head Assembly (Part No. 100039-1)

Description:
The Low Mass Cutting Head (100039-1) is a high-performance, lightweight cutting head assembly designed for abrasive waterjet systems, specifically compatible with P-series nozzles . The "Low Mass" designation indicates a reduced-weight construction, which is critical for minimizing inertia on the Z-axis and allowing for faster acceleration, higher traverse speeds, and more responsive motion control during intricate cutting .

This assembly serves as the main structural body that connects the water on/off valve to the mixing chamber and focusing tube. It is engineered to provide a rigid, perfectly coaxial alignment between the water orifice (jewel) and the mixing tube, which is essential for producing a coherent, high-energy cutting stream . Rated for continuous operation at 60,000 PSI (approximately 4,137 bar), this part number is a common OEM replacement for H2O Jet and Flow waterjet systems, cross-referenced with Flow part #100039-1.

Applications:

• Serves as the primary structural body for the cutting head assembly in high-performance abrasive waterjet systems

• Mounts the water orifice (jewel), mixing chamber, and focusing tube in perfect coaxial alignment

• Suitable for high-speed precision cutting of metals, composites, stone, and glass where reduced inertia improves dynamic accuracy

• Compatible with H2O Jet, Flow, AccuStream, and other standard waterjet systems using P-series nozzle configurations

Features:

• Lightweight Construction: Designed for low mass to minimize inertial forces during high-speed axis motion, enabling faster acceleration and improved cutting accuracy on complex paths

• High-Strength Material: Machined from corrosion-resistant stainless steel to withstand extreme pressure cycling up to 60,000 PSI

• Precision Alignment: Maintains perfect coaxial alignment between the water orifice and mixing tube for optimal jet coherence and extended consumable life

• P-Series Compatibility: Designed to work with standard P-series nozzle components, including jewel orifices and mixing tubes

• Direct OEM Replacement: Interchangeable with H2O Jet #100039-1 and Flow #100039-1

Maintenance:

Inspection:

• Regularly inspect the internal bore and cone sealing surfaces for signs of erosion, pitting, or scoring

• Check all threaded connections and sealing surfaces for damage, wear, or corrosion

• Inspect for cracks or deformation, especially after any impact or overtightening events

Cleaning:

• During consumable replacement (orifice, mixing tube), thoroughly clean the internal bore and sealing surfaces with low-pressure water and a soft cloth

• Remove all abrasive debris, mineral deposits, and old seal residue

• Do not use abrasive tools or metal implements that could scratch precision-machined surfaces

Installation Guidelines:

• Full Depressurization (Critical): Always fully depressurize the waterjet system and follow lockout/tagout procedures before disassembling or servicing the cutting head

• Torque Compliance: Tighten all retaining nuts and connections to the specific torque values listed in the equipment service manual

• Thread Lubrication: Apply a thin, even layer of high-pressure anti-seize lubricant to threads during reassembly to prevent galling

• Component Orientation: Ensure the water orifice, mixing chamber, and focusing tube are correctly oriented and fully seated before final tightening

• Replace if Damaged: Replace the cutting head body immediately if cracks, severe internal erosion, thread damage, or compromised sealing surfaces are detected. Do not attempt to repair a cracked or severely worn body

Cross-Reference Information:

• H2O Jet #: 100039-1

• Flow #: 100039-1

• Compatible with P-series nozzle components

• Rated for 60,000 PSI operation
