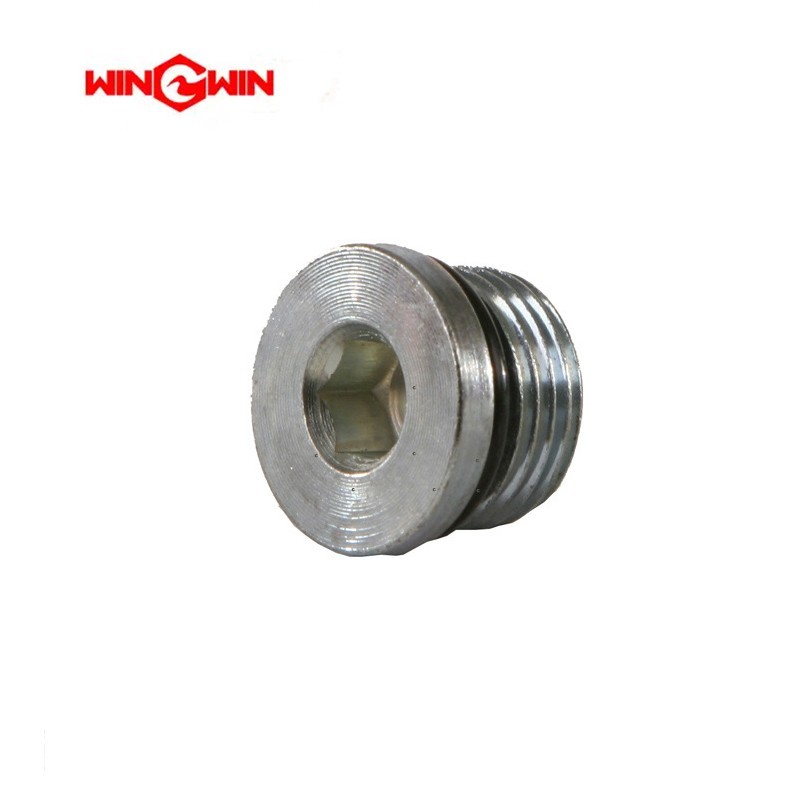

Product Name: Plug, ORB, .75 (O-Ring Boss Hydraulic Port Plug) – Part No. 05071055

Description:
This component is a .75 inch (3/4″) ORB (O-Ring Boss) hydraulic port plug, a precision-machined threaded plug designed to seal unused ports on critical components in high-pressure waterjet cutting systems . The .75 designation indicates the nominal size, corresponding to a 3/4″ ORB port, which typically utilizes a 1 1/16-12 UNF thread.

The ORB (O-Ring Boss) design uses a precision straight thread (unified thread standard) with an integrated O-ring groove. The O-ring provides the primary seal by being compressed between the plug and the machined boss face of the port, creating a leak-tight barrier that prevents hydraulic fluid from escaping .

Manufactured from high-strength steel with a corrosion-resistant coating (e.g., zinc plating), this plug is engineered to withstand the extreme pressure cycling and harsh, high-moisture environment of waterjet operation . According to the OEM parts diagram for the Hydraulic Manifold Assembly (P/N 72157461), this plug is listed as Item 8, with a quantity of 1 required per assembly . It is also used in the Hydraulic Hose Connections assembly (P/N 72159239) as Item 5, with a quantity of 2 required .

Applications:

• Seals unused ORB ports in the hydraulic manifold assembly (72157461) of waterjet intensifier systems

• Blocks off unused ports in hydraulic hose connection assemblies

• Prevents hydraulic fluid leakage and contamination ingress at port connections

• Used on SL-VI 50HP and other compatible waterjet power units

• Applied during system assembly, component reconfiguration, or when diagnostic ports are not in use

• Compatible with KMT, AccuStream, H2O Jet, and other standard waterjet hydraulic systems

Features:

• Standard ORB Design: Features a precision straight thread (1 1/16-12 UNF for 3/4″ size) with an integrated O-ring groove for a reliable, leak-proof seal against the port's machined boss face

• .75 Inch Size: Nominal 3/4″ ORB port plug

• Corrosion-Resistant Construction: Manufactured from high-strength steel with a protective coating (e.g., zinc plating) to resist rust and corrosion in harsh waterjet environments

• Critical Sealing Component: Relies on the integrity of the O-ring for sealing; a damaged or missing O-ring will result in high-pressure fluid leakage

• Direct OEM Replacement: Interchangeable with the original equipment manufacturer's part number 05071055, as listed in official hydraulic manifold assembly parts diagrams (Item 8, Qty 1)  and hydraulic hose connections assembly (Item 5, Qty 2)

Maintenance:

Failure Diagnosis (When to Replace):

• External Fluid Leakage: Visible oil weeping from the plugged port indicates O-ring failure or thread damage, requiring immediate attention

• O-Ring Degradation: When removed, inspect the O-ring for nicks, cuts, flattening (compression set), hardening, or cracking. Any visible damage warrants replacement

• Thread Damage: Stripped, galled, or corroded threads prevent proper tightening and sealing

• Pressure Drop: A system's inability to maintain hydraulic pressure can be caused by a leaking port plug

• Cracked or Deformed Plug Body: Any cracking, distortion, or severe corrosion of the plug body requires immediate replacement

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize the hydraulic system, and follow lockout/tagout procedures. Never service a pressurized system

• Single-Use O-Ring: The metal plug body itself can be reused, but the O-ring is a single-use consumable. Always replace the O-ring with a new one whenever the plug is removed and reinstalled

• Thread Preparation: Clean all threads thoroughly with a soft brush and compatible solvent. Remove all debris, old sealant, and corrosion

• O-Ring Lubrication: Apply a thin, uniform layer of clean hydraulic oil or manufacturer-recommended O-ring lubricant to the new O-ring during installation to prevent pinching, rolling, or tearing

• Do Not Use Thread Sealant: For ORB connections, do not use thread sealant or PTFE tape on the threads, as the seal is made by the O-ring, not the threads

• Torque Compliance: Tighten the plug to the specific torque value listed in the equipment service manual using a calibrated torque wrench . For a 3/4″ ORB fitting in a steel body, the typical torque range is 75-95 N·m (55-70 ft·lbs) . Over-tightening can damage the port threads or O-ring; under-tightening will cause leaks

• Proper Seating: Ensure the O-ring is correctly seated in its groove and the plug is fully threaded in by hand before applying final torque

• Replacement Criteria: Replace the plug immediately if threads are damaged, the O-ring groove is compromised, the body shows visible cracking or deformation, or persistent leakage occurs despite proper installation

• Cross-Reference Part Numbers: Interchangeable with ORB .75 plugs listed in waterjet hydraulic manifold assembly parts lists (Item 8 in 72157461)  and hydraulic hose connections assembly (Item 5 in 72159239)
