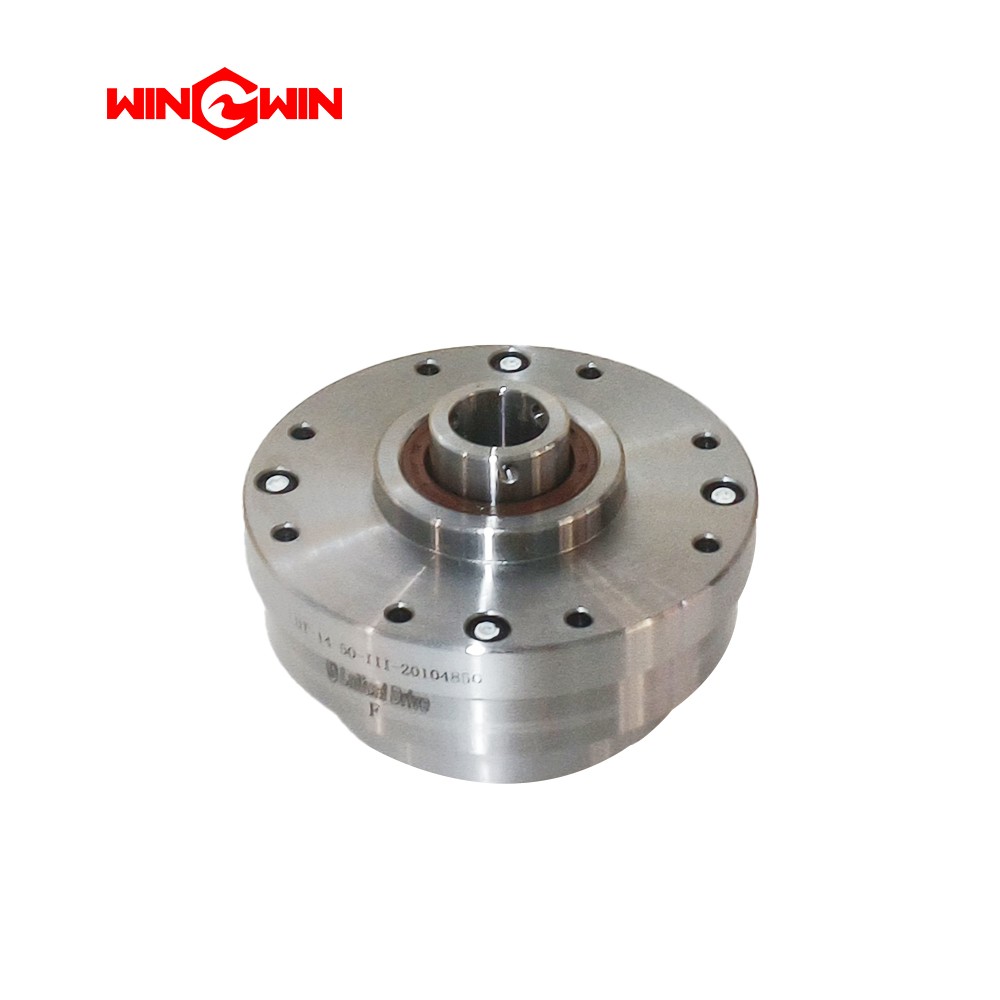

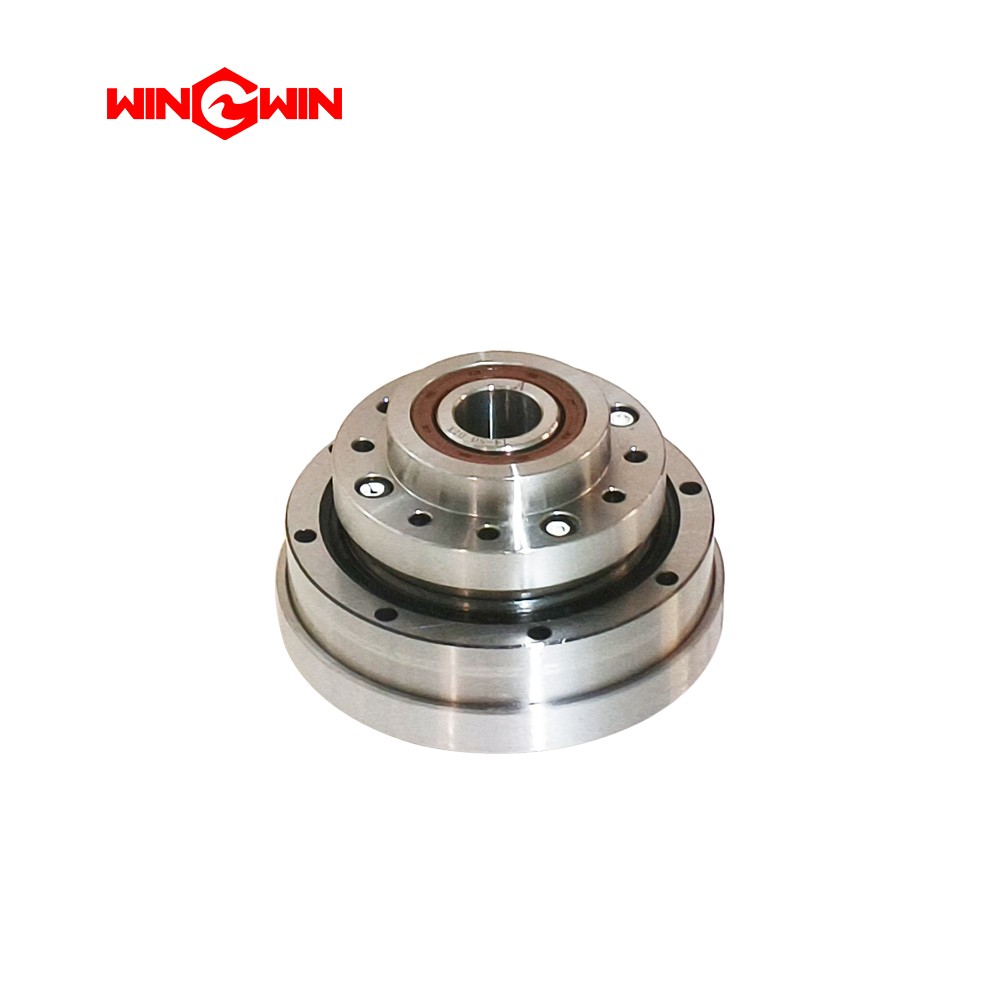

Product Name: Laifual Drive LHT-14-50-III Harmonic Reducer / Harmonic Gearbox

Description:
This component is a LHT series harmonic reducer manufactured by Laifual Drive . Harmonic reducers (also known as strain wave gearboxes) are high-precision transmission components that provide large speed reduction ratios, zero backlash, and compact form factors .

This specific model, LHT-14-50-III, belongs to the LHT series, which is characterized by a large-diameter hollow hole and a flat (short) shape design, making it suitable for applications requiring pass-through cabling or compact axial dimensions .

Applications:

• Robotics (particularly robotic arms and joints for small to medium payloads)

• Waterjet / Laser / CNC Cutting Machines (for rotary axes or articulation joints)

• Medical Equipment and high-precision automation machinery

• Satellite / Aerospace actuator systems

Features & Parameters:

• High Precision: Designed for high positional and rotational accuracy due to multiple teeth meshing simultaneously, which neutralizes pitch errors .

• Large Hollow Bore: The "H" in LHT indicates a large hollow hole, ideal for routing cables, hoses, or laser beams directly through the center of the joint .

• High Reduction Ratio: Achieves high single-stage reduction ratios (standard range 30:1 to 500:1, with 50:1 being the specific ratio for this model) .

• High Torque & Rigidity: Rated for high torque capacity relative to its size .

• Zero Backlash: Ensures precise motion control without lost motion .

• Long Life: Designed with an improved "LS" tooth profile for increased load capacity (+15%) and extended lifespan (>15,000 hours) .

• Quiet Operation: Minimal vibration and noise during operation .

Maintenance (Harmonic Reducer General Guidelines)

Harmonic reducers are high-precision mechanical components. Maintenance focuses on lubrication, load management, and contamination prevention .

1. Lubrication Management (Critical)

• Requirement: Use specialized grease (e.g., lithium-based high-performance grease) .

• Schedule: Lubricate the internal啮合区域 (啮合区域) every 100-200 operating hours to prevent dry running and tooth wear .

• Note: If used in a waterjet environment (high humidity/abrasive dust), ensure the input/output shaft seals are intact to prevent grease contamination.

2. Load & Torque Control

• Avoid long-term operation exceeding 120% of the rated torque.

• Overload conditions can permanently deform the flexible spline (Flexspline) .

3. Sealing & Contamination Prevention

• In dusty environments (like waterjet garnet dust), ensure external防尘罩 (protective covers) are installed to prevent abrasive particles from entering the bearing housing.

• Check the O-rings and sealing lips regularly for wear.

4. Performance Monitoring

• Check for excessive transmission clearance (backlash) or reduced positioning accuracy.

• Listen for abnormal noises (grinding or rattling) which may indicate bearing or flexspline fatigue .

5. Life Expectancy

• Rated design life is >15,000 hours under optimal load conditions .
