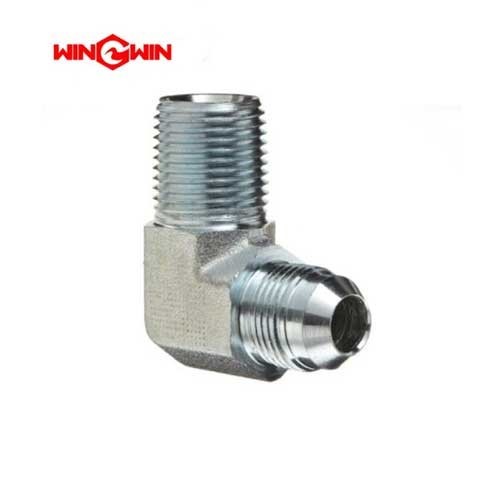

Adapter for Water Jet Cutting Machine Parts – JIC to Pipe, 50 x 50, Model No. 49887011-Adapter-JICPipe-50-x-50.1331.3-1

Introduction, Application, Features, and Maintenance:

This component is an adapter designed for water jet cutting systems. It converts between a JIC (Joint Industry Council) connection and a standard pipe (NPT or BSP) connection, both with a 50 mm nominal size, allowing components with incompatible connection types to be joined together.

Application:
Used to connect high-pressure lines, fittings, or valves that have different connection standards in water jet cutting machines. Typical installations include between pump outlets, valve assemblies, manifolds, or cutting head supply lines where a JIC-to-pipe transition is required.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Converts between JIC (flared seat) and standard pipe thread (NPT or BSP) connections.

• Both ends feature 50 mm nominal size for straight-through flow.

• Manufactured from high-strength, corrosion-resistant material suitable for abrasive water jet media.

• Precision-machined sealing surfaces ensure leak-free operation.

• Compact design minimizes space requirements and reduces potential leak points.

Maintenance:

• Regularly inspect the adapter body, JIC flare surface, pipe threads, and sealing surfaces for signs of erosion, cracking, or damage.

• Check for leakage at both connection ends during machine operation.

• Replace immediately if any leakage, surface pitting, thread damage, or sealing surface damage is detected.

• Use compatible thread sealant or tape on the pipe thread side as required.

• Inspect the JIC flare surface for scratches or damage that could compromise sealing.

• Follow specified torque values when tightening both connection ends.
