English Translation of Title:

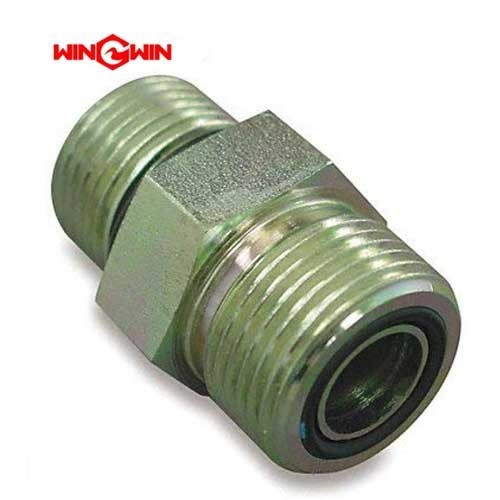

Adapter for Water Jet Cutting Machine Parts – Hose to ORB, 50 x 50, Model No. 49833882-Adapter-HoseORB-50-x-50.1323.3-1

Introduction, Application, Features, and Maintenance:

This component is an adapter designed for water jet cutting systems. It converts between a hose connection and an ORB (O‑Ring Boss) connection, both with a 50 mm nominal size, allowing components with incompatible connection types to be joined together.

Application:
Used to connect flexible hoses to ORB‑type fittings, valves, or pump outlets in water jet cutting machines. Typical installations include between hoses and rigid tubing, pump discharge lines, or cutting head supply lines where a hose‑to‑ORB transition is required.

Features:

• Rated for moderate to high pressures (depending on system design).

• Converts between hose (barb or crimp‑style) and ORB (O‑ring sealed) connection standards.

• Both ends feature 50 mm nominal size for straight‑through flow.

• Manufactured from high‑strength, corrosion‑resistant material suitable for water and abrasive slurry exposure.

• Precision‑machined sealing surfaces ensure leak‑free operation.

• Compact design minimizes space requirements and reduces potential leak points.

Maintenance:

• Regularly inspect the adapter body, O‑ring seat, threads, and hose connection for signs of erosion, cracking, or damage.

• Check the O‑ring for hardening, cracking, or deformation.

• Check for leakage at both connection ends during machine operation.

• Replace immediately if any leakage, surface pitting, or thread damage is detected.

• Always use a new O‑ring when reassembling the ORB connection.

• Inspect the hose connection area for signs of wear or hose degradation.

• Follow specified torque values when tightening the ORB connection.
