English Translation of Title:

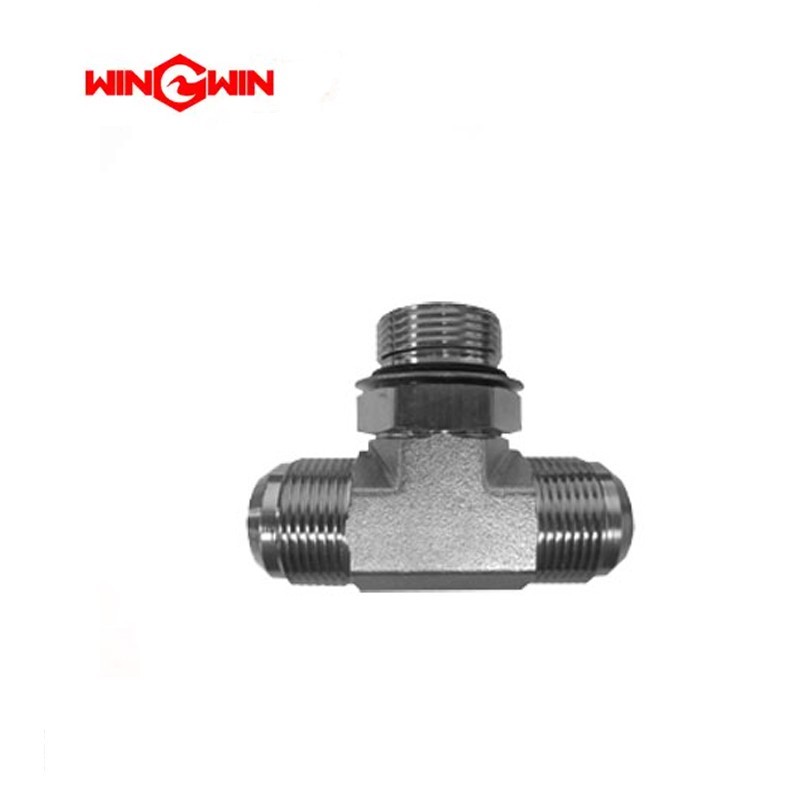

Tee Fitting for Water Jet Cutting Machine Parts – JIC to ORB, 25 x 25, Model No. 20454519-Tee-JICORB-25-x-25.1309.3-1

Introduction, Application, Features, and Maintenance:

This component is a tee fitting designed for water jet cutting systems. It combines JIC (Joint Industry Council) and ORB (O-Ring Boss) connection standards, both with a 25 mm nominal size, allowing flow to be split or merged while accommodating different port types.

Application:
Used to divide or merge high-pressure water or abrasive slurry flow in water jet cutting machines. Typical installations include connecting multiple cutting heads from a single pump, combining return lines, or integrating pressure sensors and bypass circuits where JIC-to-ORB transitions are required.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Tee configuration allows 90-degree branch flow from the main line.

• Converts between JIC (flared seat) and ORB (O-ring sealed) connection standards.

• All ports feature 25 mm nominal size.

• Manufactured from high-strength, corrosion-resistant material suitable for abrasive water jet media.

• Precision-machined sealing surfaces ensure leak-free operation.

Maintenance:

• Regularly inspect the tee body, threads, O-ring seat, and flared sealing surface for signs of erosion, cracking, or thread damage.

• Check the O-ring (if present) for hardening, cracking, or deformation.

• Check for leakage at all three connection points during machine operation.

• Replace immediately if any surface pitting, thread damage, or leakage is detected.

• Always use a new O-ring when reassembling the ORB connection.

• Inspect the JIC flare surface for scratches or damage that could compromise sealing.

• Follow specified torque values for all three connections.
