CYLINDER-SCREW-M20X65-D23M20X65-046.1584.3-1

Short Description:

Used for BFT/BHDT pump.
We enable precise cutting and protect your efficient production.
With genuine BFT parts, your waterjet system always runs like new.
1. Performance revitalized, costs halved.
2. Choose BFT, choose reliability.

INQUIRY

Details

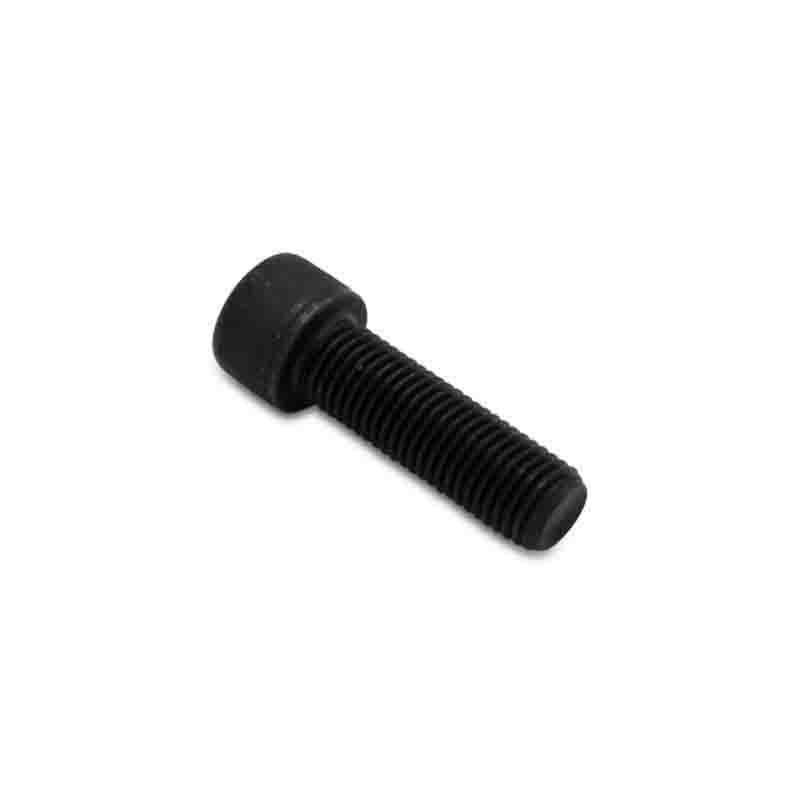

Product Name: Cylinder Head Screw / Heavy-Duty Hexagon Socket Head Cap Screw (M20 x 65mm) – Part No. D23M20X65/046

Description:
This component is a high-strength metric cylinder head screw, specifically dimensioned as M20 x 65mm (20mm nominal diameter, 65mm length). It is a hexagon socket head cap screw (Allen bolt) manufactured to DIN912 standards .

Constructed from high-grade alloy steel and heat-treated to a property class 12.9 rating, this screw offers the highest tensile strength available for metric fasteners (approximately 1,220 MPa minimum) . This makes it capable of withstanding the extreme clamping loads, vibration, and mechanical stress inherent in high-pressure waterjet intensifier pumps and hydraulic systems operating at 60,000-94,000 PSI (approximately 4,137-6,480 bar).

Applications:

Used as a structural fastener to secure critical components in waterjet intensifier pumps and hydraulic manifolds.
Specifically identified as a cylinder head screw for BFT waterjet intensifier assemblies, used to clamp the cylinder head, end caps, or manifold blocks to the main pump body .
Suitable for ultra-high pressure waterjet systems and heavy-duty industrial fastening applications.

Features:

Property Class 12.9: High-strength alloy steel construction provides exceptional tensile strength and fatigue resistance under cyclic loading .
M20 x 65mm Dimensions: Standard metric coarse thread for secure fit and consistent torque performance.
Hexagon Socket Drive: Internal hex (Allen) drive allows secure tightening in confined spaces within the pump assembly.
Precision Threading: CNC-machined threads ensure consistent clamping force and accurate torque application.
Corrosion-Resistant Finish: Coated to resist galling and degradation from water and hydraulic fluid exposure.

Maintenance:

Failure Diagnosis (When to Replace):

Thread Damage: Stripped, galled, or corroded threads prevent proper tightening and must be replaced immediately.
Stretching or Necking: Visible thread deformation or narrowing indicates the screw has been over-torqued and must be replaced.
Cracking or Fatigue: Any visible cracks on the head or shank warrant immediate replacement.
Difficult Assembly: If the screw feels gritty or binds during threading, threads may be damaged.
Scheduled Overhaul: During major pump rebuilds, it is best practice to replace high-stress fasteners as a set rather than reusing them.

Installation and Inspection Guidelines:

Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system and hydraulic system, and follow lockout/tagout procedures.
Thread Preparation: Clean all threads thoroughly before assembly. Apply a thin, even layer of high-pressure anti-seize lubricant ("Blue Goop" or silver-grade compound) to the threads to prevent galling and ensure accurate torque application .
Torque Compliance (Critical): Use a calibrated torque wrench to tighten the screw to the specific torque value listed in the equipment service manual. Do not over-tighten or under-tighten.
Use Proper Tools: Use the correct size hex key (Allen wrench) and ensure it is fully seated in the socket drive to avoid stripping the head.
Replacement Criteria: Replace the screw immediately if threads are damaged, the hex socket is stripped, the head is cracked, or if the screw shows signs of stretching or corrosion.
Cross-Reference Information: This screw is identified as cylinder head screw D23M20X65/046 for BFT waterjet systems .
