Product Name: Muff / Nozzle Muff (Part No. 300614)

Description:

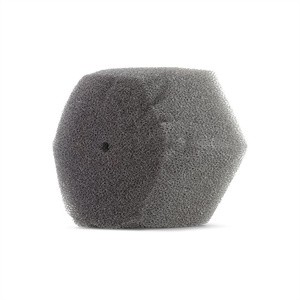

This component is a nozzle muff, also known as a splash guard or noise reduction cover, specifically designed for the cutting head assembly of abrasive waterjet cutting systems . It is a foam or rubber-based cylindrical cover that slides over the mixing tube (focusing tube) to serve two primary functions: containing high-pressure water splash-back and abrasive particle spray, and significantly reducing the operational noise generated by the cutting jet .

The muff is a safety and environmental component, not a high-pressure sealing part. It is typically manufactured from open-cell or closed-cell polyester foam or rubber, chosen for its ability to absorb sound energy and its resistance to water and abrasive dust exposure. This specific 4-inch model (3 x 4 inches) is designed to fit over standard mixing tubes on MAXJET 4 and compatible waterjet cutting heads .

Applications:

• Slips over the mixing tube (focusing tube) to contain abrasive splash-back and water spray during cutting

• Reduces the high-frequency noise generated by the abrasive waterjet exiting the mixing tube

• Protects the operator and surrounding equipment from abrasive overspray

• Suitable for abrasive waterjet cutting systems operating at 60,000 PSI (approximately 4,137 bar)

• Compatible with OMAX MAXJET 4 nozzles and other standard waterjet cutting heads

Features:

• Noise Reduction: Absorbs sound energy from the high-velocity cutting jet, significantly lowering operational noise levels

• Splash Containment: Prevents water and abrasive particles from spraying back toward the operator and machine components

• Foam Construction: Made from durable, water-resistant polyester foam that withstands repeated exposure to water spray and abrasive dust

• Easy Installation: Simply slides over the mixing tube; no tools are required for installation or removal

• Lightweight: Does not add significant weight to the cutting head assembly

• OEM Compatibility: Direct replacement for OMAX part number 300614 ; cross-references with AccuStream 1-13182

Maintenance:

Failure Diagnosis:

• Visual Wear: The muff may become torn, frayed, or compressed over time, reducing its effectiveness

• Noise Increase: If cutting noise levels become noticeably louder, the muff may be worn or missing

• Excessive Splash: Water or abrasive spray escaping from the cutting area indicates the muff is no longer containing the jet effectively

• Material Degradation: Prolonged exposure to water, UV light, or chemicals may cause the foam to deteriorate or disintegrate

Inspection and Replacement Procedures:

• Regular Inspection: Periodically check the muff for signs of wear, tearing, compression set, or material degradation

• Cleaning: Remove the muff and rinse with clean water to remove accumulated abrasive dust. Allow to dry completely before reinstalling. Do not use compressed air to clean, as this may damage the foam structure

• Replacement Indicators: Replace the muff immediately if it is torn, crushed, missing, or no longer fits snugly on the mixing tube

• Preventive Replacement: It is recommended to replace the muff during annual machine servicing or whenever the mixing tube is replaced

• Installation: Simply slide the new muff over the mixing tube until it is fully seated against the cutting head body

• Full Depressurization: Before installing or removing the muff, always fully depressurize the waterjet system to prevent accidental jet activation and injury

• Use Proper Muff: Ensure replacement muff is the correct size (3 x 4 inches) for the mixing tube diameter and cutting head configuration
