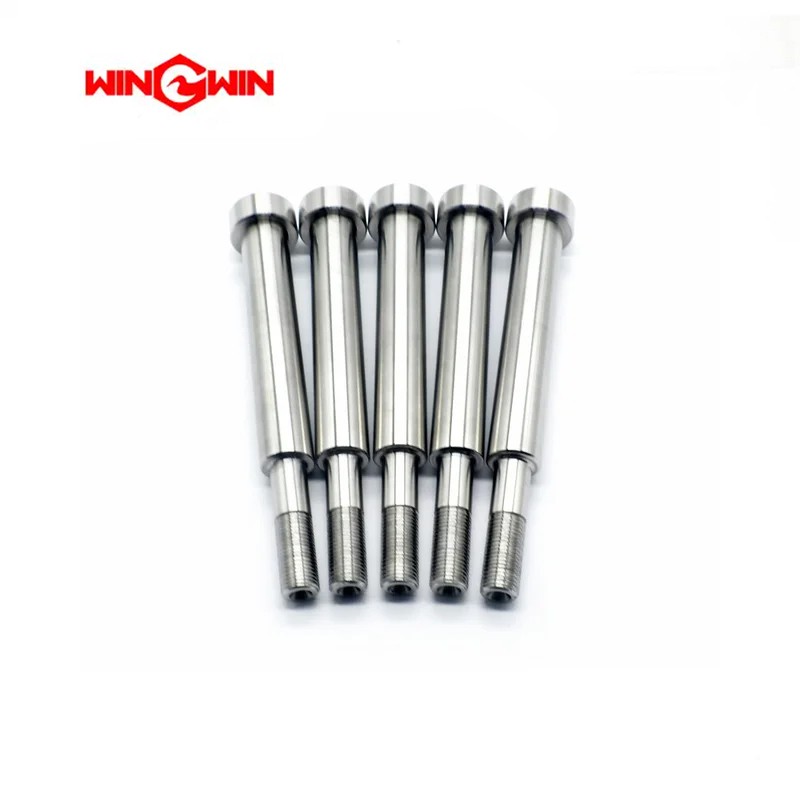

Product Name: Ceramic Plunger / Piston Rod (Part No. 20457912)

Description:
This component is a ceramic plunger, also known as a ceramic piston rod. It is a critical reciprocating component installed in the high-pressure intensifier pump of a waterjet cutting system . As the core part of the pressure generation system, it is driven by the hydraulic piston to compress water from low pressure to ultra-high cutting pressures (typically 60,000 PSI / 4,137 bar) .

Manufactured from advanced ceramic materials such as Zirconia, the plunger features a mirror-polished surface finish with exceptional smoothness (Ra 0.02μm). This ultra-smooth surface minimizes friction against high-pressure dynamic seals, significantly extending seal life and preventing mineral or particulate buildup . The ceramic material offers extreme hardness, high wear resistance, and optimal sliding properties, ensuring a long operational life under continuous high-cycle operation .

This specific part number (20457912) is compatible with both 60KSI (60,000 PSI) and 94KSI systems and is also known under several cross-reference numbers: 100013-1, 010253-1, 1-11309, and TL-001005-1 .

Applications:

• Installed as the primary pressure-generating element within the high-pressure cylinder of waterjet intensifier pumps

• Converts hydraulic energy into ultra-high-pressure water flow for precision cutting

• Suitable for 50HP, 60HP, and 100HP waterjet intensifier pumps

• Compatible with major waterjet systems (KMT, Flow, H2O Jet) and 60K/94K pressure ratings

Features:

• Ceramic Material Construction: Manufactured from high-purity Zirconia ceramic offering extreme hardness, toughness, and fracture strength

• Mirror-Polished Surface: Exceptional surface smoothness (Ra 0.02μm) reduces seal wear and prevents contaminant buildup

• High Wear Resistance: Engineered to withstand millions of pressure cycles without surface degradation

• Optimal Sliding Properties: Low friction coefficient minimizes heat generation during reciprocating motion

• Heat Shrink Assembly: The ceramic rod is connected to the metal cap via heat shrinkage, ensuring the strongest assembly that will not fall apart

Maintenance:

• Handle with Extreme Care: Ceramic materials are very hard but brittle. Avoid dropping or striking the plunger against hard surfaces, as this can cause cracks or chips

• Inspect Surface Thoroughly: Before installation, examine the entire surface under good lighting for scratches, pitting, chipping, or uneven wear. Any visible defect warrants immediate replacement

• Check Installation Alignment: Ensure both cylinder end caps are perfectly aligned during installation; misalignment can cause the plunger to bend or break due to external forces

• Lubricate During Installation: Apply manufacturer-recommended grease to the plunger surface during assembly to prevent dry start-up and reduce initial friction

• Verify Smooth Movement: After installation, the ceramic rod should have a slight amount of axial play under normal conditions. If it feels tight or bound, there may be debris in the pocket or alignment issue

• Inspect During Seal Replacement: Each time the high-pressure seals are replaced, inspect the plunger surface for wear. A damaged plunger will rapidly destroy new seals

• Full Depressurization: Always fully depressurize the waterjet system (both high-pressure water and hydraulic circuits) and follow lockout/tagout procedures before removing or servicing the plunger

Cross-Reference Part Numbers:

• KMT #20457912

• H2O Jet #100013-1

• Flow #010253-1, TL-001005-1

• AccuStream #1-11309
