Product Name: Focusing Tube / Mixing Tube (ROCTEC 500) – Part No. 05097944

Description:

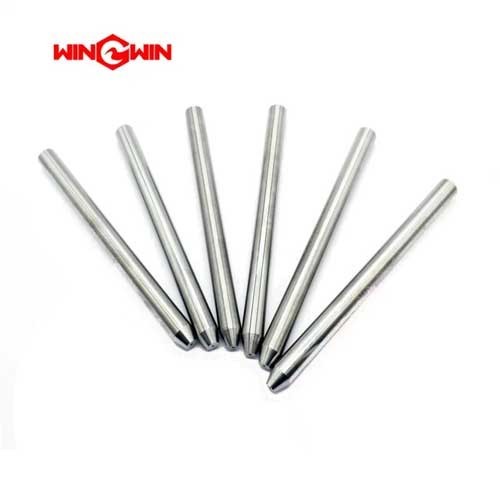

This component is a ROCTEC 500 series focusing tube, also known as a mixing tube or abrasive nozzle, specifically designed for high-pressure abrasive waterjet cutting systems . It is a precision-machined cylindrical consumable component manufactured from ultra-hard, wear-resistant tungsten carbide material .

The designation 00300762 mm indicates an inner diameter of 0.030 inches (approximately 0.76 mm), while 313794 mm indicates an overall length of approximately 12.35 inches (313.8 mm). This tube is specifically designed as a R-500 series, which is a Kennametal ROCTEC 500 brand abrasive focusing tube .

The focusing tube is installed in the cutting head assembly immediately downstream of the mixing chamber and water orifice. Inside the tube, the high-pressure waterjet (typically up to 60,000-90,000 PSI / 4,137-6,200 bar) and abrasive particles are accelerated and focused into a coherent cutting stream. This component is a high-wear consumable part that requires periodic replacement as its inner bore gradually erodes over time .

Applications:

• Serves as the final focusing element for the abrasive waterjet in cutting heads

• Defines the kerf width, cutting precision, and edge quality for the waterjet system

• Installed in the cutting head assembly of KMT waterjet systems

• Used during scheduled preventive maintenance, performance restoration, or when cutting quality visibly degrades

Features:

• Tungsten Carbide Construction: Premium-grade tungsten carbide provides exceptional wear resistance and extended service life under extreme abrasive flow conditions

• ROCTEC 500 Series: Advanced material formulation for enhanced wear resistance compared to standard tungsten carbide tubes

• Precision Inner Diameter: 0.030 inches (0.76 mm) bore ensures a coherent, straight jet for clean, narrow kerf cuts

• Optimized Length: 12.35 inches (313.8 mm) length is engineered for specific cutting head configurations to maximize jet coherence

• Pressure Rating: Rated for continuous operation at 60,000-94,000 PSI (4,137-6,480 bar)

• Critical Consumable Component: As a high-wear part, requires periodic replacement; lifespan depends on abrasive type, flow rate, operating pressure, and water quality

Maintenance:

Failure Diagnosis (When to Replace):

• Reduced Cutting Performance: Noticeable decrease in cutting speed, rougher edge finish, or increased kerf width indicates bore wear

• Visible Bore Damage: Inspect the exit orifice for ovality, flaring, or visible bore enlargement using a magnifying glass

• Asymmetric Wear: Uneven wear on the tube outlet circumference indicates misalignment between the water orifice and focusing tube

• Clogged Tube: Complete blockage results from wet or contaminated garnet abrasive

• Scheduled Preventive Replacement: Replace based on manufacturer hourly recommendations (typically 100-200 operating hours) or when cut quality degrades

Inspection and Replacement Guidelines:

• Rotation Practice (Critical): Index the focusing tube by 120 degrees every 10-20 operating hours to distribute wear evenly around the circumference and significantly extend service life

• Orifice-to-Tube Ratio (Critical): Maintain a 1:3 diameter ratio between the water orifice and focusing tube. For a 0.030 inch (0.76 mm) mixing tube, use a 0.010 inch (0.25 mm) water orifice

• Alignment Check: Ensure perfect coaxial alignment between the water orifice and focusing tube. Misalignment causes asymmetric bore wear, poor cut quality, and significantly reduced tube life

• Water Quality Impact: Poor water quality with contaminants or hardness accelerates tube wear; maintain proper water filtration

• Abrasive Quality: Use clean, dry garnet abrasive of appropriate mesh size (typically 80 mesh for 0.030 inch tube). Wet or contaminated abrasive causes clogging and accelerated wear

• Handling Caution: Tungsten carbide is extremely hard but brittle; handle carefully to avoid chipping, cracking, or impact damage during installation

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system and follow lockout/tagout procedures

• Clean Installation: Thoroughly clean the mixing chamber and nozzle body before installing a new tube to remove debris that could cause misalignment

Cross-Reference Information:

• OEM KMT #: 05097944

• WSI #: AB37B500

• Also referenced as: KMT Part # 05097944, ROCTEC 500 series

• Inner Diameter: 0.030" (0.76 mm)

• Length: 12.35" (313.8 mm)

• Pressure Rating: 60,000-94,000 PSI (4,137-6,480 bar)

• Compatible with: KMT AccuStream and other standard waterjet systems
