Product Name: ORB Plug / O-Ring Boss Hydraulic Port Plug (Part No. 05025176)

Description:

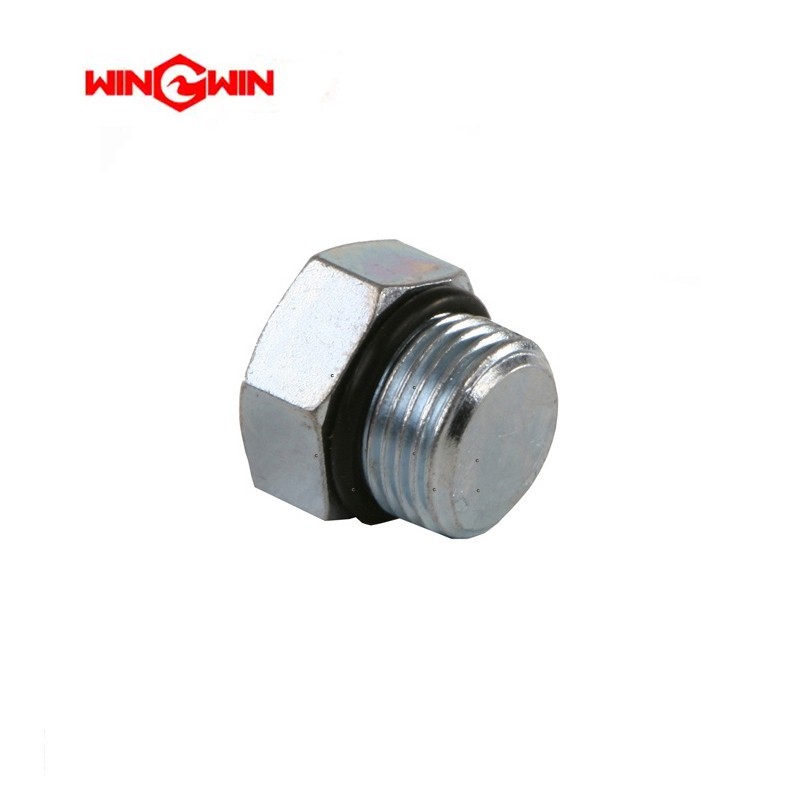

This component is an ORB (O-Ring Boss) hydraulic port plug with a 1/2 inch nominal size. It is designed to seal unused ports on hydraulic manifolds, reservoir assemblies, and other fluid distribution components within high-pressure waterjet cutting systems.

The plug features a male threaded body with an integrated O-ring groove. The O-ring provides the primary seal by being compressed between the plug and the boss face of the port, creating a leak-tight barrier that prevents hydraulic fluid or water from escaping. The plug is typically manufactured from high-strength steel with a corrosion-resistant finish (e.g., zinc plating) to withstand harsh operating environments and system pressures up to 60,000 PSI (approximately 4,137 bar). This specific part number is listed as a standard component in reservoir assembly parts diagrams for major waterjet brands.

Applications:

• Sealing unused O-Ring Boss (ORB) ports on hydraulic manifolds, reservoir tanks, and valve blocks

• Preventing high-pressure hydraulic fluid leakage and contamination ingress at port connections

• Used during initial system assembly, component reconfiguration, or when accessories are removed from a manifold

• Compatible with KMT, AccuStream, H2O Jet, and standard waterjet intensifier systems

Features:

• ORB (O-Ring Boss) Design: Male thread with integrated O-ring groove provides a reliable, leak-free seal against the port's machined boss face

• 1/2 Inch Nominal Size: Standard port size for medium-flow hydraulic circuits in waterjet reservoir and manifold assemblies

• Corrosion-Resistant Finish: Typically zinc-plated for durability in wet and hydraulic environments

• Standardized Thread: Conforms to SAE O-Ring Boss (ORB) specifications (J1926 / SAE J514), ensuring compatibility with standard ORB ports

• Critical Sealing Component: Reliable seal prevents fluid loss, system pressure drop, and environmental contamination

Maintenance:

Failure Diagnosis (When to Replace):

• External Fluid Leakage: Visible water or hydraulic oil weeping from the plugged port indicates O-ring or thread damage requiring immediate plug replacement

• Thread Damage: Stripped, galled, or corroded threads prevent proper sealing and must be replaced

• O-Ring Degradation: Inspect the O-ring for nicks, cuts, flattening (compression set), hardening, or cracking. Any visible damage warrants replacement

• Cracked or Deformed Plug Body: Any cracking, distortion, or severe corrosion of the plug body requires immediate replacement

• Pressure Drop: Inability to maintain system pressure may indicate a leaking plug seal

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize both the hydraulic system and high-pressure water circuits, and follow lockout/tagout procedures

• Single-Use O-Ring: While the metal plug body can be reused, the O-ring is a single-use consumable. Always replace the O-ring with a new one whenever the plug is removed and reinstalled

• Thread Preparation: Clean all threads thoroughly with a soft brush and compatible solvent. Remove all debris, old sealant, and corrosion

• O-Ring Lubrication: Apply a thin, uniform layer of clean hydraulic oil or manufacturer-recommended high-pressure grease to the new O-ring during installation to prevent pinching, rolling, or tearing

• Torque Compliance: Tighten the plug to the specific torque value listed in the equipment service manual using a calibrated torque wrench. Over-tightening can damage port threads or the O-ring; under-tightening will cause leaks

• Proper Seating: Ensure the O-ring is correctly seated in its groove before threading the plug into the port

• Replacement Criteria: Replace the plug immediately if threads are damaged, the O-ring groove is compromised, the body shows visible cracking or deformation, or persistent leakage occurs despite proper installation

• Cross-Reference Part Numbers: Interchangeable with ORB .50 plugs listed in waterjet reservoir assembly parts diagrams
