English Translation of Title:
Low‑Pressure Water Outlet Manifold for Water Jet Pump Parts – Model No. 20413848-Manifold-LP-Water-Outlet-Water-Jet-Pump-Parts.869.3-1

Introduction, Application, Features, and Maintenance:

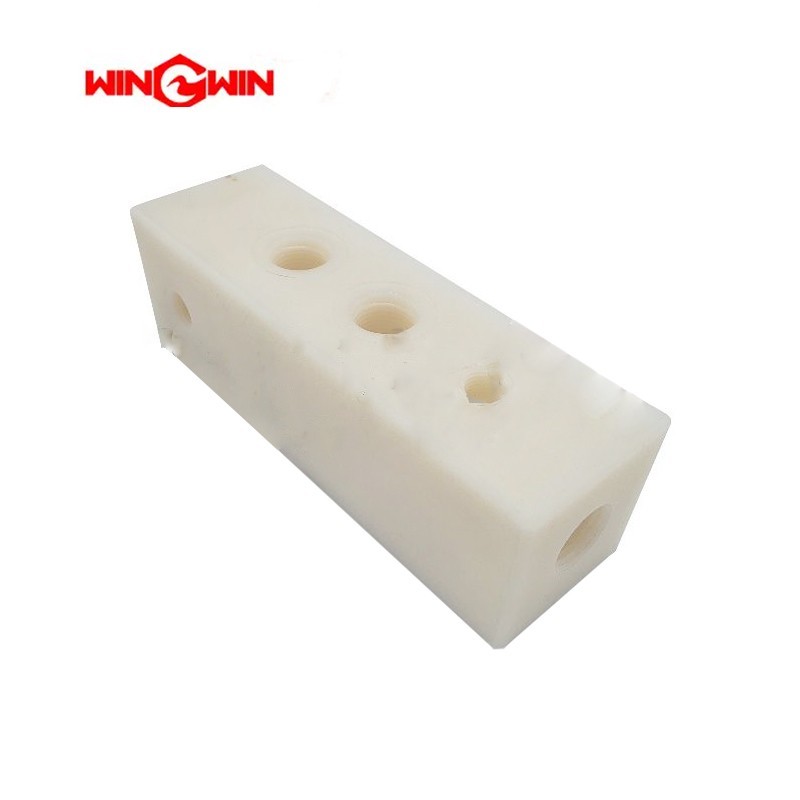

This component is a low‑pressure water outlet manifold designed for water jet cutting pump systems. It is a distribution block that collects and directs low‑pressure water from the pump outlet to various downstream circuits or components within the machine.

Application:
Used in the low‑pressure water supply system of water jet cutting machines to distribute water from the pump outlet to the high‑pressure pump inlet, cooling circuits, abrasive mixing systems, or other auxiliary components. Typical installations include pump discharge manifolds, cooling water distribution blocks, and supply headers for multiple cutting heads.

Features:

• Designed for low‑pressure water applications (typically < 10 bar / 145 psi).

• Multiple outlet ports allow simultaneous distribution to several circuits.

• Manufactured from corrosion‑resistant materials suitable for continuous water exposure.

• Compact block design simplifies plumbing and reduces the number of individual fittings.

• May include integrated mounting holes for secure attachment to the machine frame.

• Provides a central distribution point for efficient system layout.

Maintenance:

• Regularly inspect the manifold body and connections for signs of corrosion, cracking, or leakage.

• Check for flow restrictions or blockages in the internal passages.

• Verify that all connections are properly torqued to prevent leaks.

• Replace the manifold immediately if any visible damage, cracks, or persistent leakage is observed.

• Flush the manifold periodically to remove sediment or debris buildup.

• Use compatible seals and thread sealants as required for the connections.
