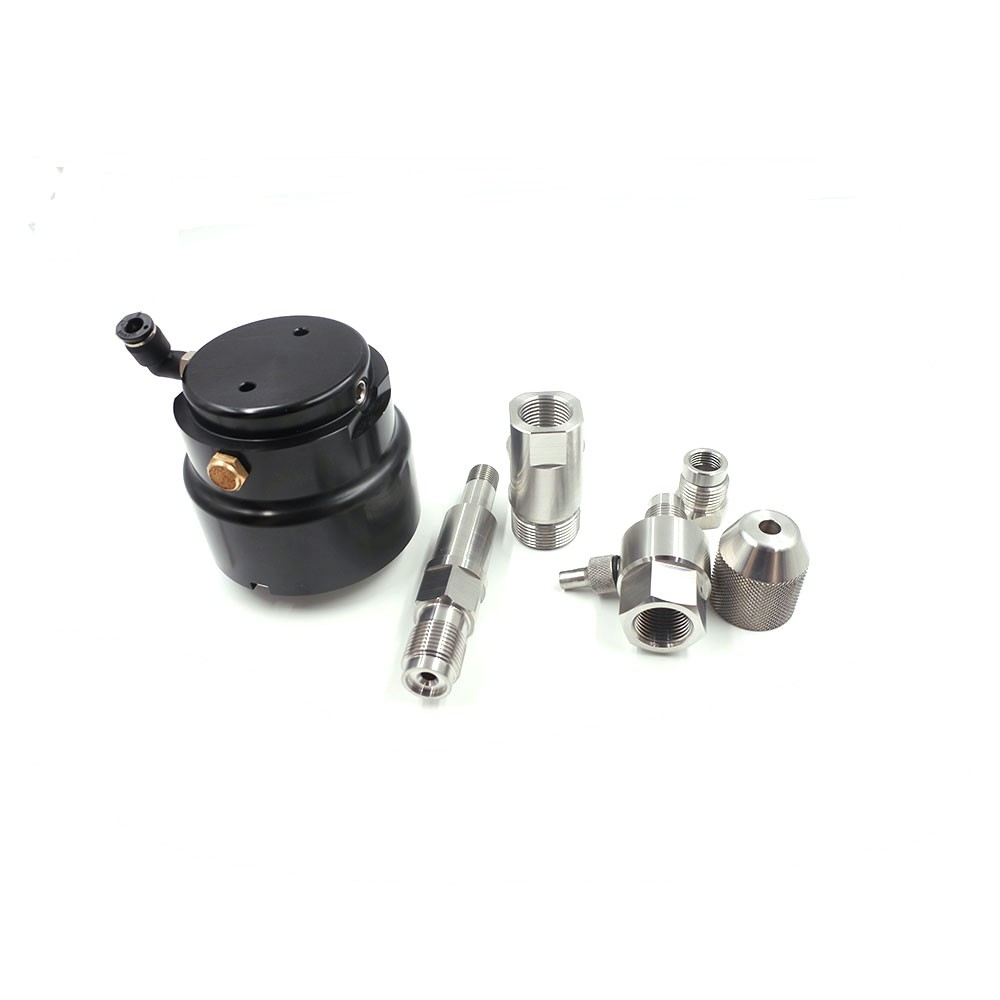

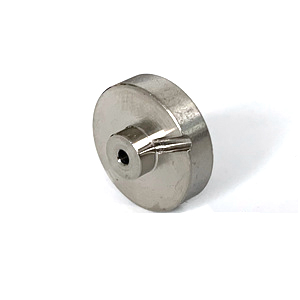

Waterjet Cutting Head Assembly
Product Name: Waterjet Cutting Head Assembly
Description:
A waterjet cutting head assembly is the terminal device in a high-pressure waterjet system that converts ultra-high-pressure water (typically 60,000–90,000 psi / 4,137–6,200 bar) into a coherent cutting jet for precision material processing . The assembly serves as the core component that controls jet formation, abrasive mixing (in abrasive systems), and cutting stream delivery to the workpiece.
The cutting head assembly typically consists of several precision-engineered components arranged coaxially to maintain perfect alignment of the flow channel . This coaxial alignment is critical for jet coherence, cutting accuracy, and maximizing the service life of consumable parts.
Main Components
Applications
Abrasive Waterjet Cutting: Used for cutting hard materials including metal (steel, aluminum, titanium, copper), stone (marble, granite), glass, ceramics, and composites
Pure Waterjet Cutting: Used for cutting soft materials such as rubber, foam, plastic, paper, and food products without abrasive contamination
2D & 3D Profile Cutting: Used on 3-axis, 5-axis (A/C tilt/rotation), and robotic waterjet systems for complex geometry cutting
Bevel Cutting & Edge Preparation: Enables angled cuts (up to ±60°) for weld preparation and chamfering applications
Features
Coaxial Alignment Design: The cutting head body features a continuous precision-machined bore from inlet to outlet, ensuring all components (orifice, mixing chamber, mixing tube) remain perfectly aligned along the central axis for optimal jet coherence
Gasket-Free Sealing: Precision-machined mating surfaces create high-pressure seals without the need for additional gaskets or packing materials, reducing potential leak points and simplifying assembly
Orifice-to-Tube Ratio Optimization: Maintain a 1:3 diameter ratio between the orifice and the mixing tube (e.g., 0.010″ orifice / 0.030″ mixing tube) to maximize cutting efficiency and extend mixing tube life
Modular Wear Component Design: Only three primary consumable parts (orifice, mixing chamber, mixing tube) require regular replacement, protecting the expensive nozzle body from wear
Multiple Pressure Ratings: Available in configurations for 60,000 psi (standard) and 90,000 psi (high-performance) operation
5-Axis Capability: Advanced cutting head assemblies support A-axis (tilt) and C-axis (rotation) motion for complex 3D bevel cutting and dynamic taper compensation
Maintenance
Daily / Pre-Operation Checks:
Inspect Consumables: Visually check the jewel orifice and mixing tube for wear or damage before operation . Replace if the waterjet stream appears split or divergent
Check Connections: Ensure all connectors (high-pressure water pipe, abrasive inlet hose, rotary connectors) are tightly clamped
Apply Thread Sealant: Cover threaded connection areas with appropriate sealant (e.g., "blue glue") to prevent loosening and thread damage
Verify Reference Points: Ensure A-axis and C-axis are exactly at their reference points before machining operations
Inspect Hoses: Check high-pressure water pipes and abrasive hoses for signs of wear, cracks, or damage
Consumable Replacement Guidelines:
Jewel Orifice: Replace when the waterjet stream becomes divergent or cutting performance degrades. No fixed schedule—replace based on visible wear
Mixing Tube: Replace when cut quality decreases (rougher edges, slower cutting) or when bore wear/enlargement is visible
Abrasive Inlet Hose: Replace if clogged (clear with compressed air) or if significant wear/cracking is visible
Rotary Connector Seals: Replace if water leakage occurs at rotary joints
Seal Assemblies: Replace worn seals to prevent high-pressure water leaks
Troubleshooting Common Issues:
Best Practices:
Preventive Replacement: Replace wear components (orifice, mixing tube, seals) on a proactive schedule based on operating hours rather than waiting for failure to avoid unplanned downtime
Clean Assembly: Thoroughly clean component interfaces and ensure correct seating during reassembly to maintain alignment and sealing integrity
Use Anti-Seize Compound: Apply anti-seize lubricant to threaded components during reassembly to prevent galling and facilitate future disassembly
Full Depressurization: Always fully depressurize the waterjet system (high-pressure water, hydraulic system, and abrasive supply) and follow lockout/tagout procedures before any maintenance
5-Axis Head-Specific Maintenance:
