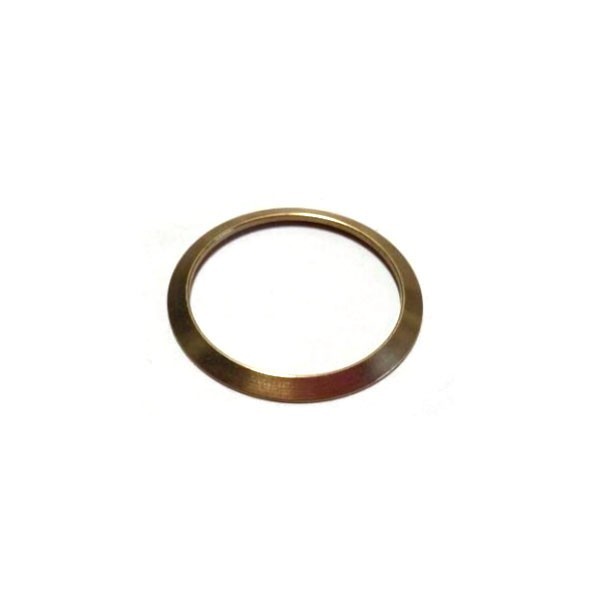

Product Name: Back Ring / Dynamic Backup Ring (Part No. IP016078/527)

Description:
This component is a precision back ring (also referred to as a dynamic backup ring or support ring) specifically designed for the high‑pressure intensifier pump in waterjet cutting systems . It is a rigid, precision‑machined ring manufactured from high‑strength material such as bronze, PEEK, or reinforced polymer .

The back ring is a critical anti‑extrusion support component that is installed within the high‑pressure seal stack of the intensifier pump, adjacent to a dynamic seal such as a U‑cup or Quad‑Ring. Under ultra‑high pressure operation (60,000–94,000 PSI / approx. 4,137–6,480 bar), the rigid back ring fills the extrusion gap between the softer dynamic seal and the metal gland wall. This prevents the primary seal material from being forced into the clearance gap under extreme pressure, which would otherwise cause rapid seal failure, pressure loss, and high‑pressure water leaks . Unlike static backup rings, this dynamic back ring is specifically engineered to withstand the reciprocating motion of the plunger or piston rod while still providing anti‑extrusion support.

Applications:

• Provides anti‑extrusion support for dynamic seals (U‑cups, Quad‑Rings) in the high‑pressure cylinder assembly of waterjet intensifier pumps .

• Installed adjacent to dynamic seals within the high‑pressure seal stack.

• Used during scheduled preventive maintenance, major pump overhauls, or when external water leakage is detected from the cylinder area.

• Suitable for ultra‑high pressure waterjet systems operating at 60,000–94,000 PSI.

• Compatible with BHDT, BFT, and other standard waterjet intensifier systems.

Features:

• Rigid construction: Made from hard, non‑deformable material to withstand extrusion forces under extreme pressure .

• Dynamic application design: Engineered to support seals under reciprocating motion conditions.

• Anti‑extrusion function: Fills the extrusion gap, preventing the softer primary seal from being forced into the gap under high pressure .

• Precision dimensions: Manufactured to exact tolerances for a perfect fit within the designated seal groove .

• Critical consumable component: Designed for periodic replacement; a worn or missing back ring leads to immediate seal failure .

• Direct OEM replacement: Interchangeable with BHDT part number IP016078/527.

Maintenance:

Failure Diagnosis (When to Replace):

• External water leakage: Visible water weeping from the high‑pressure cylinder weep hole or end cover area indicates seal stack failure, requiring back ring replacement .

• Pressure drop: Inability to maintain rated cutting pressure suggests internal seal failure, often involving extrusion damage to the primary seal .

• Visible damage during disassembly: Inspect the back ring for signs of deformation, cracking, splitting, flattening, or wear; any visible damage warrants immediate replacement .

• Premature seal failure: Frequent failure of dynamic seals often indicates a worn or missing back ring allowing excessive extrusion.

• Scheduled preventive maintenance: Standard practice to replace the back ring together with the dynamic seal during major pump overhauls (typically every 1,000–2,000 operating hours or when seal wear is detected) .

Inspection & Replacement Guidelines:

• Always replace with seals: The back ring is a single‑use consumable component. Always replace it with a new one whenever the adjacent dynamic seal is replaced .

• Full depressurisation (critical): Before any maintenance, fully depressurise the waterjet system (high‑pressure water, hydraulic system, and air supply) and follow lockout/tagout procedures .

• Clean installation: Perform the rebuild in a designated clean area. Thoroughly clean the seal groove and all mating surfaces with a soft, lint‑free cloth, removing all debris, old seal residue, and mineral deposits .

• Orientation (critical): The back ring must be installed on the low‑pressure side of the dynamic seal. Ensure correct orientation as specified in the equipment service manual; incorrect orientation will compromise sealing .

• Groove inspection: Inspect the seal groove for nicks, burrs, sharp edges, or damage that could compromise the seal stack.

• Lubrication: Apply a thin, uniform layer of manufacturer‑recommended high‑pressure grease during installation to prevent pinching, rolling, or tearing .

• Replace as a set: When servicing the high‑pressure sealing stack, replace all components (dynamic seal, back ring, and support rings) simultaneously using a complete repair kit .
