English Translation of Title:
Hydraulic Hose Assembly for Water Jet Cutting Machine Parts – 10 x 190, Model No. 10128254-Hydraulic-Hose-Assembly-10-x-190.1302.3-1

Introduction, Application, Features, and Maintenance:

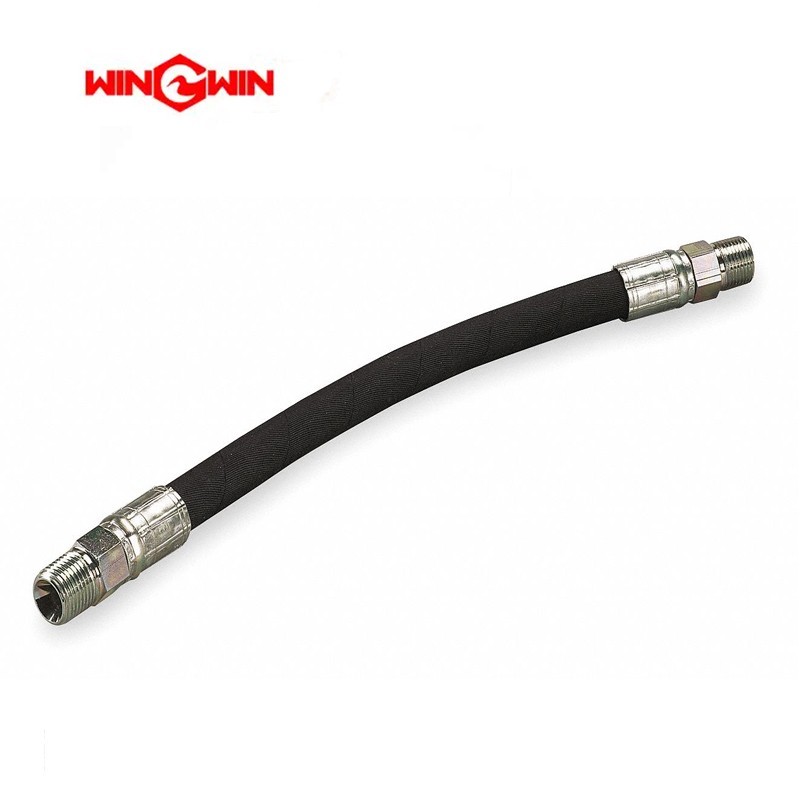

This component is a hydraulic hose assembly designed for water jet cutting systems. It consists of a flexible hose with permanently attached end fittings, featuring a nominal size of 10 mm and a length of 190 mm.

Application:
Used to convey hydraulic fluid or high-pressure water between components in water jet cutting machines. Typical installations include connections between hydraulic power units, control valves, actuators, or high-pressure pump lubrication lines where flexibility is required.

Features:

• Suitable for hydraulic fluid or water applications at system-specific pressures.

• Nominal size: 10 mm (diameter).

• Length: 190 mm.

• Flexible construction allows easy routing around obstacles and in confined spaces.

• Fitted with permanently attached end fittings (e.g., straight, 45°, or 90° depending on design) for secure, leak‑free connections.

• Manufactured from high‑strength materials with a reinforced inner tube and protective outer cover to resist abrasion, corrosion, and pressure surges.

• Designed for durability and resistance to fatigue under dynamic operating conditions.

Maintenance:

• Regularly inspect the entire hose assembly for signs of abrasion, cuts, bulging, cracking, or leakage.

• Check the end fittings for tightness, corrosion, or thread damage.

• Inspect for any kinking or sharp bends that may reduce service life.

• Replace the assembly immediately if any visible damage, leakage, or performance degradation is observed.

• Follow the manufacturer’s recommended replacement intervals based on operating hours or as part of a preventive maintenance schedule.

• Ensure proper routing and clamping to prevent excessive vibration or chafing.
