WW jet50 waterjet booster pump

Short Description:

Contact our experts for the most suitable cutting equipment and quotation
E-mail:winwin@winwjc.com

The JET 50 Waterjet Pump is a cost-effective and high-performance waterjet pump suitable for a variety

INQUIRY

Details

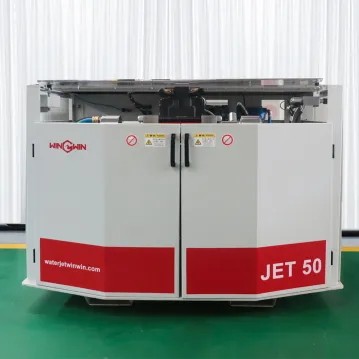

WW JET50 high-pressure waterjet cutting pump 60000psi

WW JET 50
WW JET50 pumps are among the most technologically advanced ultra-high-pressure pumps on the market. The second generation features an advanced diagnostic system, an improved hydraulic system, and a switch for highly efficient pressure generation.
1. Compact
2. Stable Operation
3. Quiet Operation

WATERJET CUTTING MACHINE PUMP SPECIFICATIONS

Rated power	40HP (30 kW)
Max. pressure	420Mpa /4200bar/60,000psi
Working pressure	360-380Mpa
Max. hole diameter	0.33mm
Max. flow rate	3.8L/min
Battery capacity	1L
Size	1600mm1200mm1100mm
Weight	0.9t

The WW JET 50 pump is a NEW cost-effective solution for waterjet cutting.

• The WW JET 50 pump uses advanced power intensifier technology, delivering proven performance and providing users with a durable and reliable water jet pump.
• The WW JET 50 also features an all-new low-profile housing design for easy access to pump controls and components, as well as a 60,000 psi working pressure for cutting steel, aluminum, stone, and other materials.
• The WW JET 50 also features an all-new compact three-phase pump design with a 60,000 psi working pressure for quick seal changes.

• The WW JET 50 power intensifier pump is the new choice for cost-effective and highly efficient cutting.
• The WW JET 50 uses high power intensifier technology, ensuring durability and stable performance.
• New type, simple design, easy operation and use. It can process steel, aluminum, stone and other materials at 60,000 psi.

WW JET 50 Features:
• PLC-based control • Basic pump on/off control, emergency stop
• Hydraulic gear shift
• Manual cooling water valve (oil-to-water heat exchanger)
• Remote start/stop, emergency stop, high/low pressure control panel
• Booster pump with 10-micron filter and gauge
• Return oil filter with service indicator
• Dual pressure compensator included
• Low water inlet pressure switch (30 psi)
• 60,000 psi design pressure
