English Translation of Title:

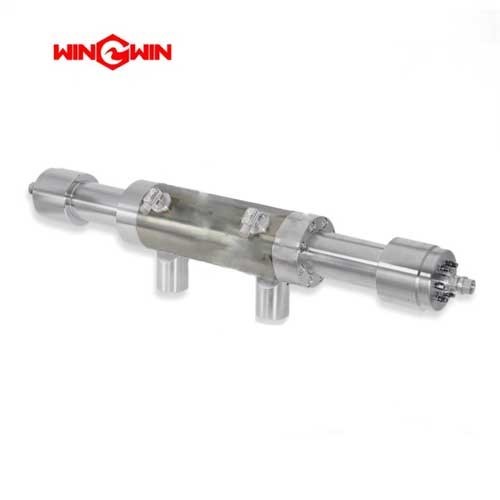

Waterjet Intensifier Topworks for Water Jet Cutting Machine Parts – Model No. 72160849-Waterjet-Intensifier-Topworks.823.3-1

Introduction, Application, Features, and Maintenance:

This component is the topworks assembly of a waterjet intensifier pump. It is the core high-pressure generating module of the pump system, consisting of the high-pressure cylinder, reciprocating plungers, check valves, and high-pressure seals. This sub-assembly is replaceable as a single unit to minimize downtime during servicing .

Application:
Used as the pressure-generating core in the intensifier pump of waterjet cutting systems. It converts low-pressure hydraulic fluid into ultra-high-pressure water (up to 60,000 PSI / 4,100 bar) for the cutting head .

Features:

• Utilizes proven intensifier technology with millions of operational hours .

• Threaded modular design allows quick service; one side of the topworks can be maintained without removing the entire intensifier .

• Long-stroke design moves more water per cycle, slowing the stroke rate and extending seal life .

• Precision metal-to-metal seals offer durability and reduced wear in the high-pressure cylinder bore .

• Hard Seal End Cap (HSEC) design eliminates extra seals and simplifies maintenance .

Maintenance:

• Seal Replacement: High-pressure water seals are the most common wear item; inspect for water leakage. A drop every few strokes indicates seals are nearing end-of-life, while leakage with each stroke means they need immediate replacement .

• Check Valve Inspection: Regularly inspect both low-pressure and high-pressure poppets for sticking, wear, or damage. The sealing faces should have a mirror-like finish for proper sealing .

• Overstroking Diagnosis: Monitor the intensifier stroke rate. Overstroking in both directions often indicates a worn or clogged orifice; overstroking in one direction points to a failed poppet or check valve on the opposite side .

• Topworks Exchange Program: Many service programs offer a complete, pre-rebuilt topworks assembly. The existing unit can be swapped in approximately 15 minutes and sent for professional rebuild, minimizing machine downtime .
