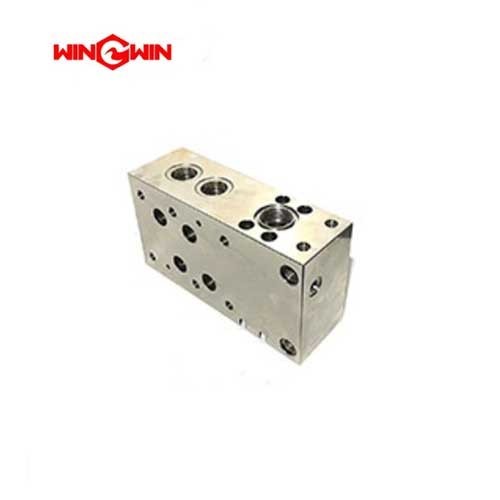

Hydraulic Manifold for SL-VI 50HP waterjet parts – Model No. 72156430-SL-VI-50HP-Waterjet-Part-Hydraulic-Manifold.886.3-1

Introduction, Application, Features, and Maintenance:

This component is a hydraulic manifold designed for SL-VI 50HP waterjet cutting systems. It is a fluid distribution block with multiple ports and internal passages that directs and controls hydraulic fluid flow to various components within the hydraulic power unit.

Application:
Used in the hydraulic power unit of SL-VI 50HP waterjet cutting machines to distribute hydraulic fluid from the pump to valves, actuators, and the intensifier system. It serves as a central hub for hydraulic fluid routing, simplifying system plumbing and reducing potential leak points.

Features:

• Rated for high-pressure hydraulic applications (typically up to 3,000–5,000 psi / 207–345 bar for the hydraulic circuit).

• Features multiple ports for connecting pumps, valves, pressure gauges, and accumulators.

• Manufactured from high-strength, corrosion-resistant material such as ductile iron or steel.

• Precision-machined internal passages ensure efficient flow and minimal pressure drop.

• Compact design reduces space requirements and simplifies system layout.

• May include integrated mounting holes for secure attachment to the machine frame.

Maintenance:

• Regularly inspect the manifold body and connections for signs of corrosion, cracking, or leakage.

• Check all threaded connections for proper torque and signs of wear.

• Monitor system pressure and flow; unusual fluctuations may indicate internal blockage or damage.

• Replace the manifold immediately if any cracks, deformation, or persistent leakage is detected.

• Clean the manifold and surrounding area periodically to prevent debris accumulation.

• Follow specified torque values for all connections.
