Standard Diamond Orifice for Water Jet Cutting Machine Parts – 0.006 x 0.152 mm, Model No. 49888886-Standard-Diamond-Orifice-0006-0152-mm.1099.3-1

(Note: The dimensions "0.006 x 0.152 mm" represent the orifice diameter and length, or are internal reference codes. Diamond orifices are precision components with extremely small bore sizes, typically measured in thousandths of an inch or hundredths of a millimeter.)

Introduction, Application, Features, and Maintenance:

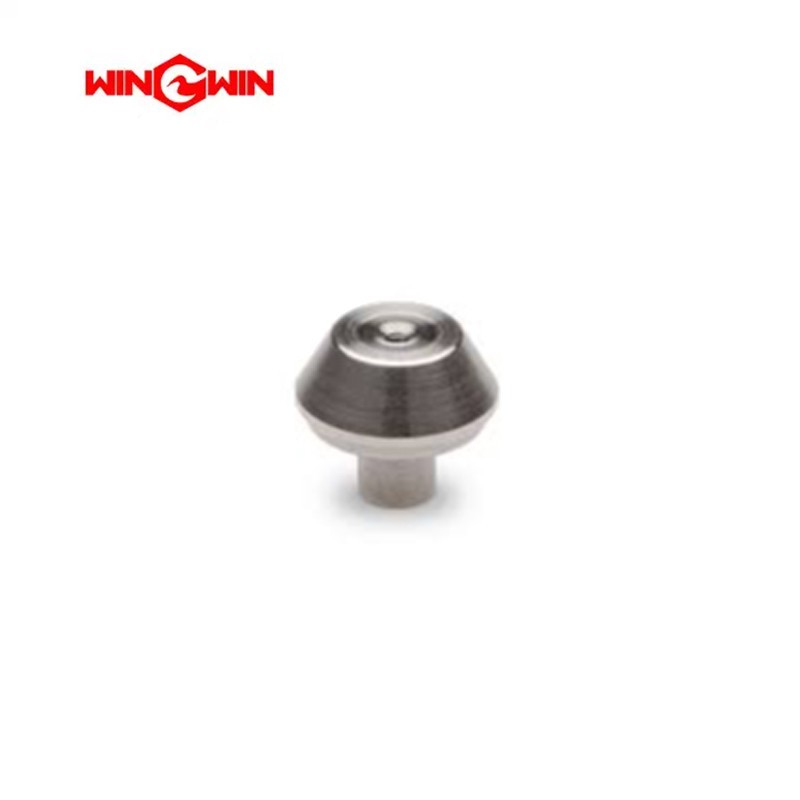

This component is a standard diamond orifice designed for water jet cutting systems. It is a precision‑machined jewel (typically synthetic diamond or ruby) with a very small, accurately sized hole that regulates the flow of high‑pressure water into the mixing chamber, where it combines with abrasive to form the cutting jet.

Application:
Used in the cutting head assembly of abrasive water jet cutting machines. The orifice is the first component that high‑pressure water passes through, creating a high‑velocity water jet that entrains abrasive particles in the mixing chamber. It is critical for achieving precise, consistent cutting performance.

Features:

• Precision‑machined diamond or jewel material provides extreme wear and erosion resistance.

• Orifice size: 0.006 inch (0.152 mm) diameter.

• Creates a focused, high‑velocity water jet for optimal abrasive entrainment.

• Directly influences cutting speed, accuracy, and nozzle life.

• Standard design for compatibility with common cutting head assemblies.

• Designed for easy replacement as a consumable wear component.

Maintenance:

• Inspect the diamond orifice regularly for signs of wear, erosion, or clogging.

• Monitor cutting performance; slower cutting or reduced jet coherence may indicate orifice wear.

• Replace the orifice immediately if the bore diameter exceeds tolerance or if cutting quality degrades.

• Handle carefully to avoid damaging the delicate jewel material.

• Clean the orifice and surrounding components to prevent debris accumulation.

• Follow the manufacturer’s recommended replacement intervals based on operating hours.
