English Translation of Title:

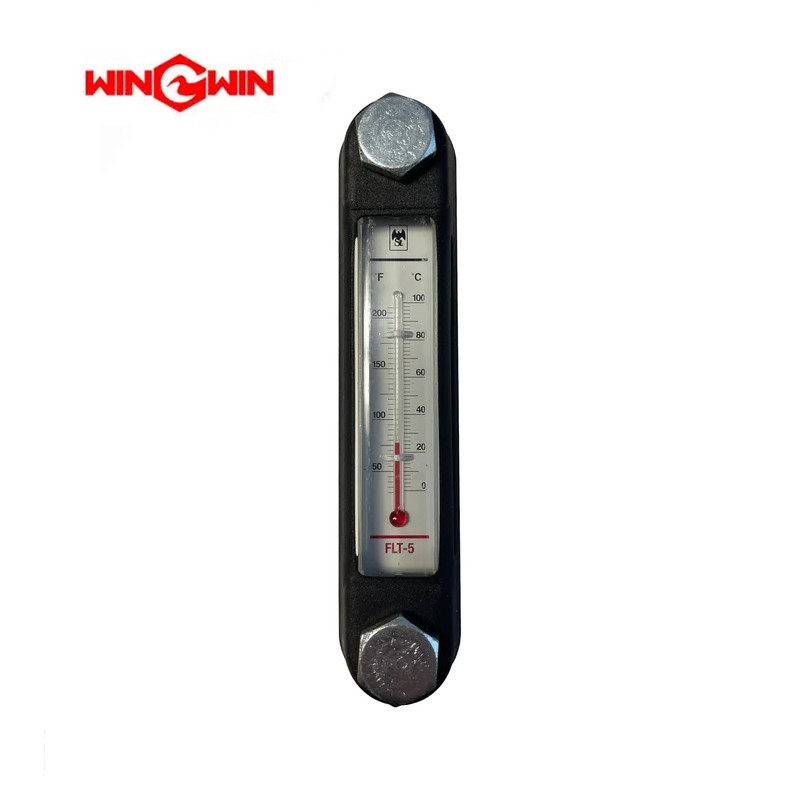

Level and Temperature Gauge for Water Jet Cutting Machine Parts – Model No. 20451474-LevelTemperature-Gauge.1311.3-1

Introduction, Application, Features, and Maintenance:

This component is a combination level and temperature gauge designed for water jet cutting systems. It provides visual indication of both fluid level and temperature in reservoirs, tanks, or sumps, allowing operators to monitor system conditions at a glance.

Application:
Used in water jet cutting machines to monitor hydraulic fluid, cooling water, or abrasive slurry levels and temperatures. Typical installations include pump reservoirs, hydraulic power units, cooling water tanks, and abrasive slurry mixing tanks where maintaining proper fluid levels and temperatures is critical for system performance and reliability.

Features:

• Dual-function design provides both level and temperature readings in a single instrument.

• Clear, easy-to-read visual scale for quick operator assessment.

• Manufactured from corrosion-resistant materials suitable for water, hydraulic fluid, and abrasive slurry exposure.

• Compact design for easy installation in confined spaces.

• May include marked minimum and maximum level indicators for safe operation.

• Temperature range appropriate for water jet cutting system operating conditions.

Maintenance:

• Regularly inspect the gauge for signs of cracking, fogging, leakage, or discoloration.

• Verify that the fluid level reading is accurate and within the recommended operating range.

• Check the temperature reading against system parameters for normal operation.

• Clean the gauge face periodically for clear visibility.

• Replace the gauge immediately if the glass/plastic face is cracked, if readings are inaccurate, or if leakage is observed.

• Ensure proper mounting and sealing to prevent fluid leakage around the gauge.
